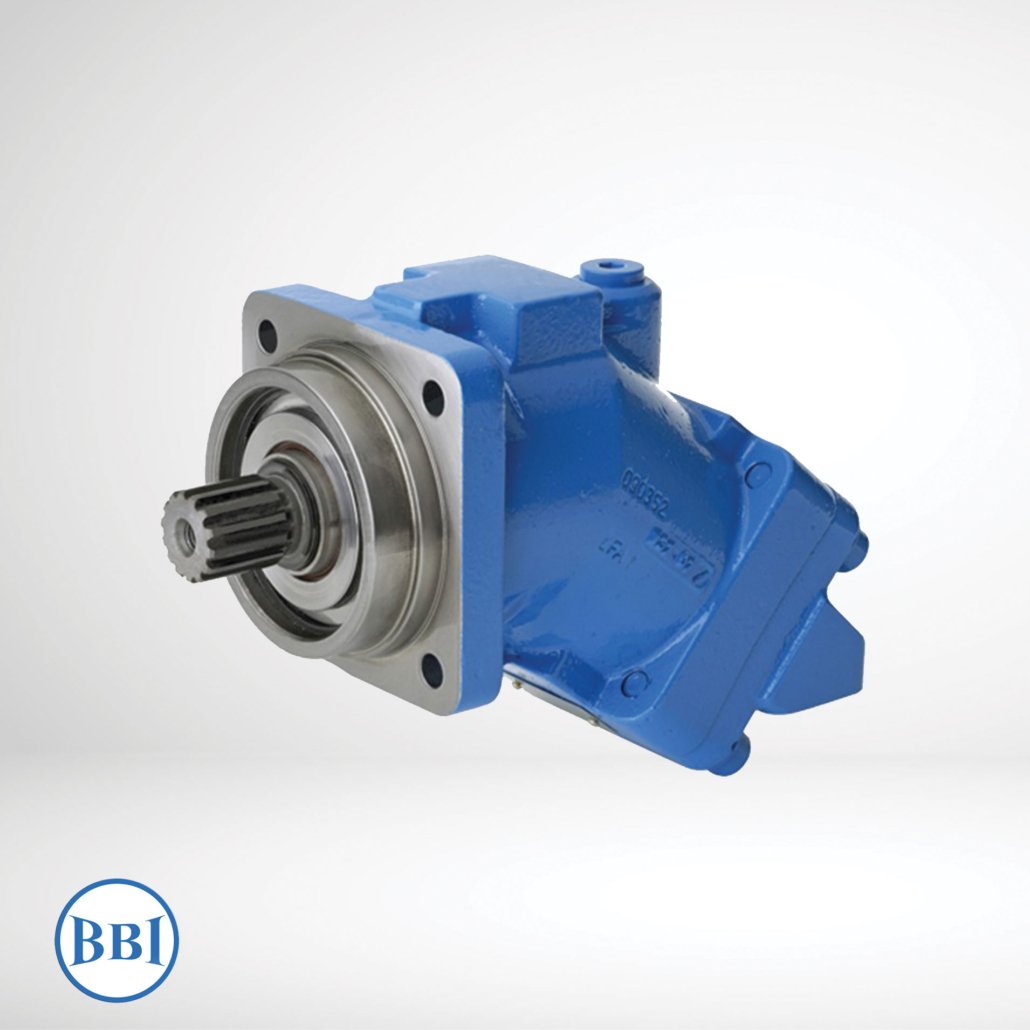

Piston Motor
Ideally used for transferring running power in agricultural and construction vehicles Displacement from 14.8 cc/rev to 333.7 cc/rev Max speed 3800 rpm Variable and fixed displacement pumps and motors are available
Piston Motor
From 12-125 cc 5800 psi (400 bar) continuous working pressure 6525 psi (450 bar) peak pressure Maximum speed from 3,400 to 8,000 rpm

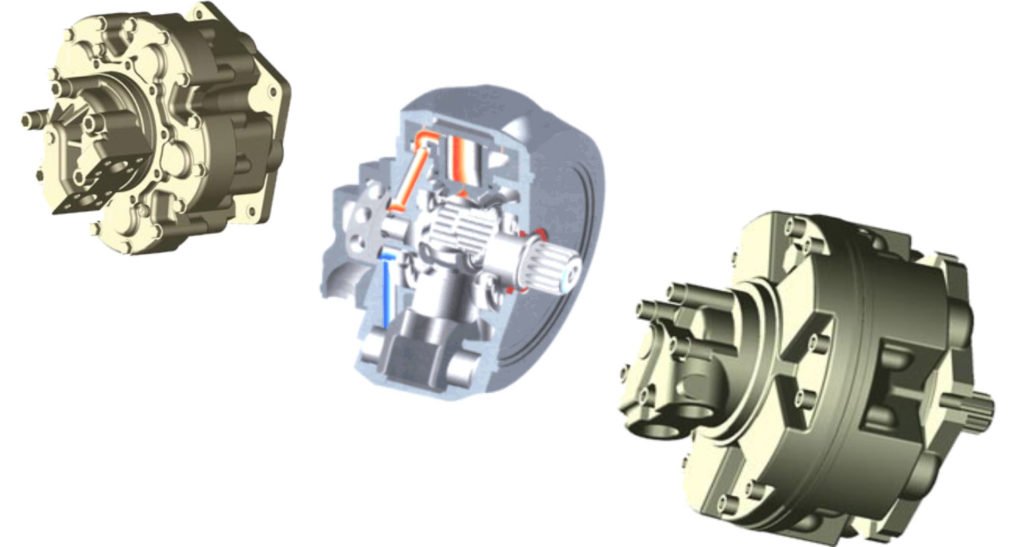

Piston Motor
Delivery 7000 cc to 30000 cc Working pressure to 350 bar Speeds to 150 r/min High performance and in versions which operate on water glycol or phosphate ester fluid

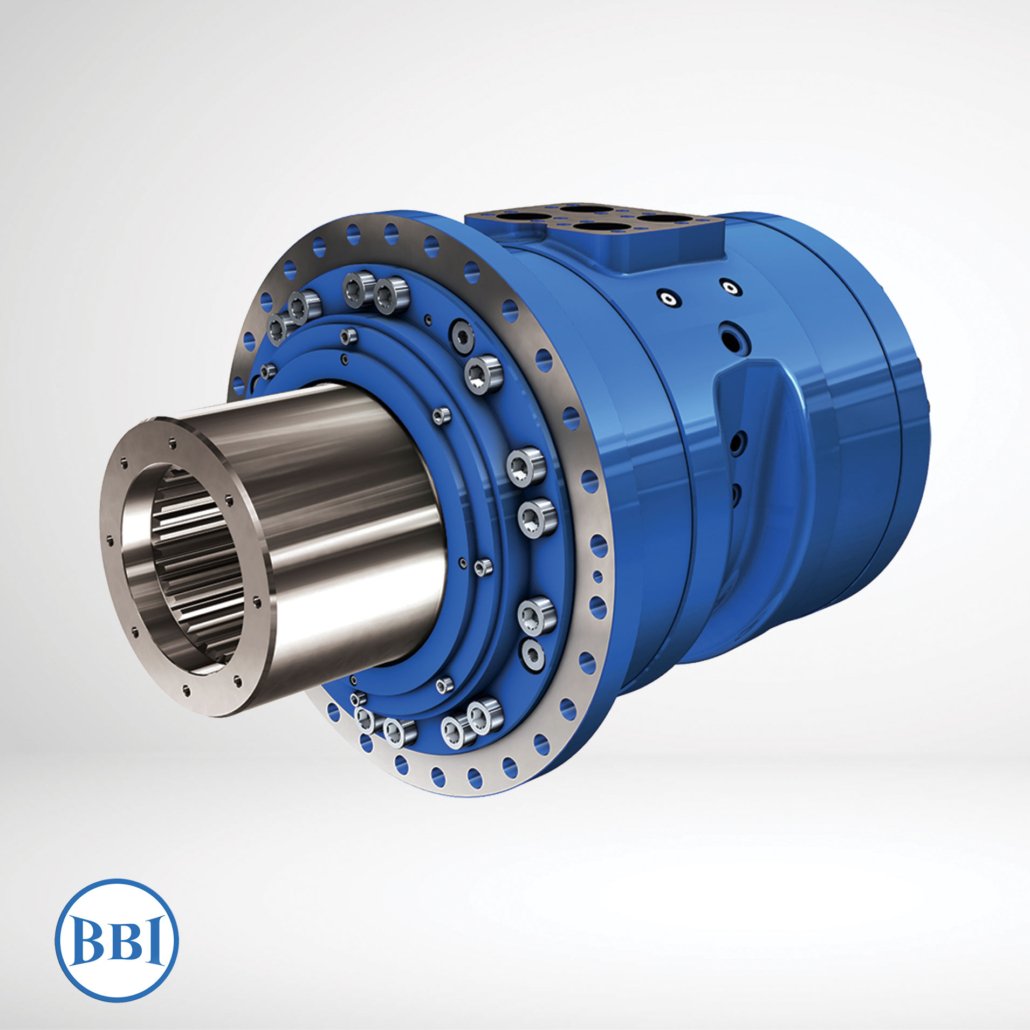

Piston Motor
Replacements to 4700 cc/rev Horse powers to 375 Continuous pressures to 210 bar Two speed, brakes and reduction gear boxes are available

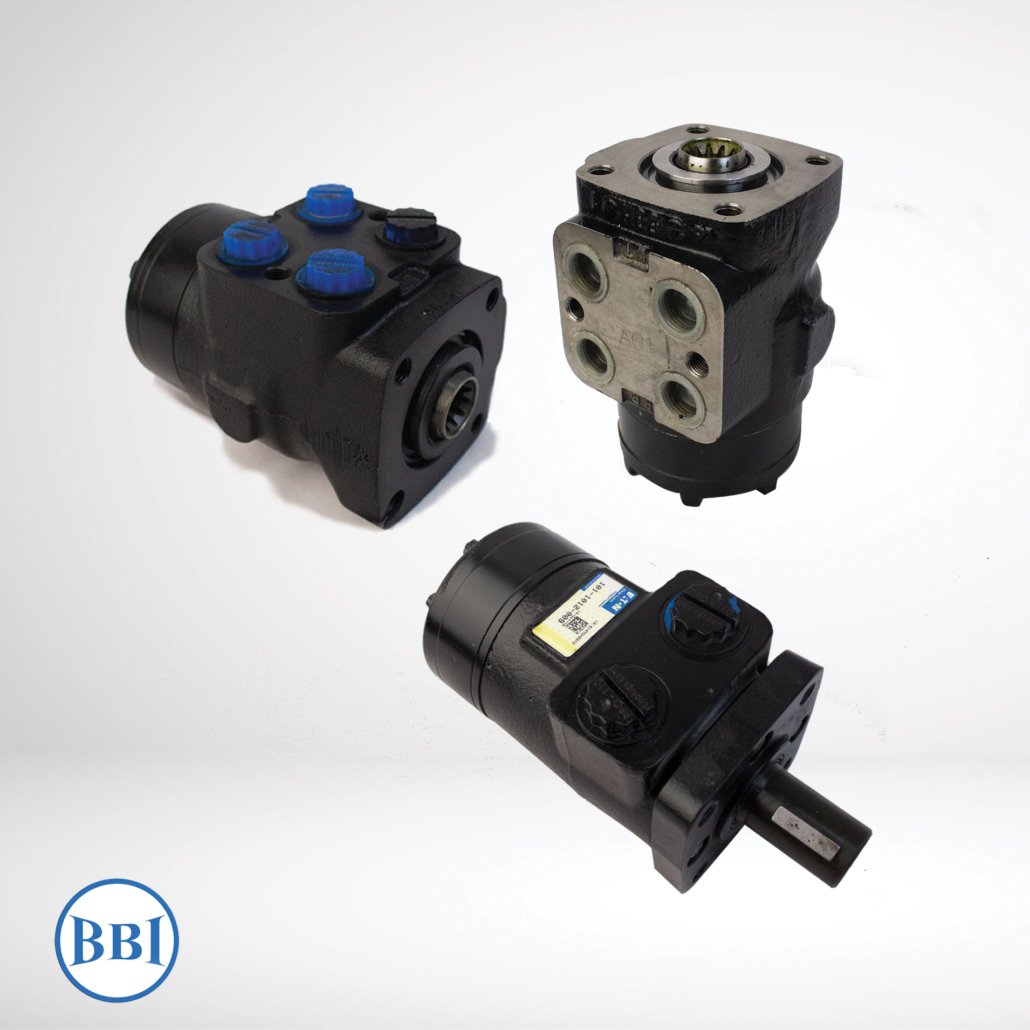

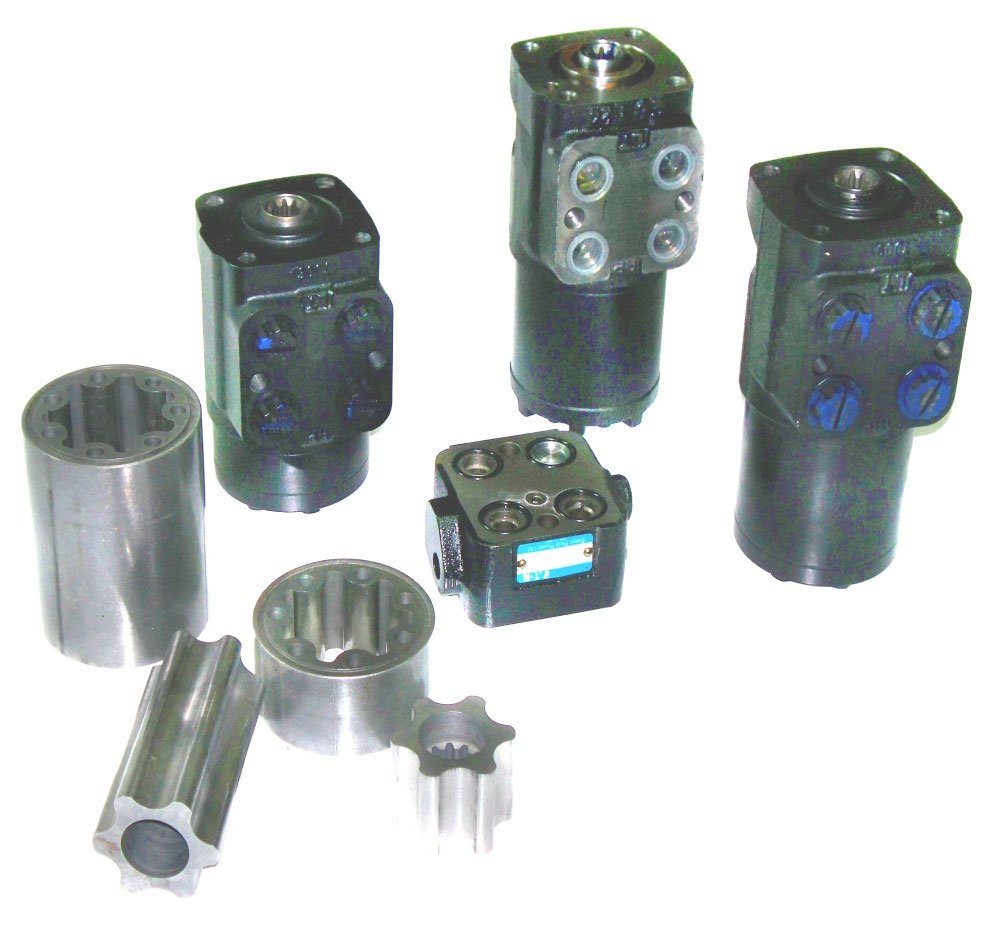

Power Steering
Displacement 60-985 cm³/r Flow rate 38-125 lpm Pressure max 241 bar

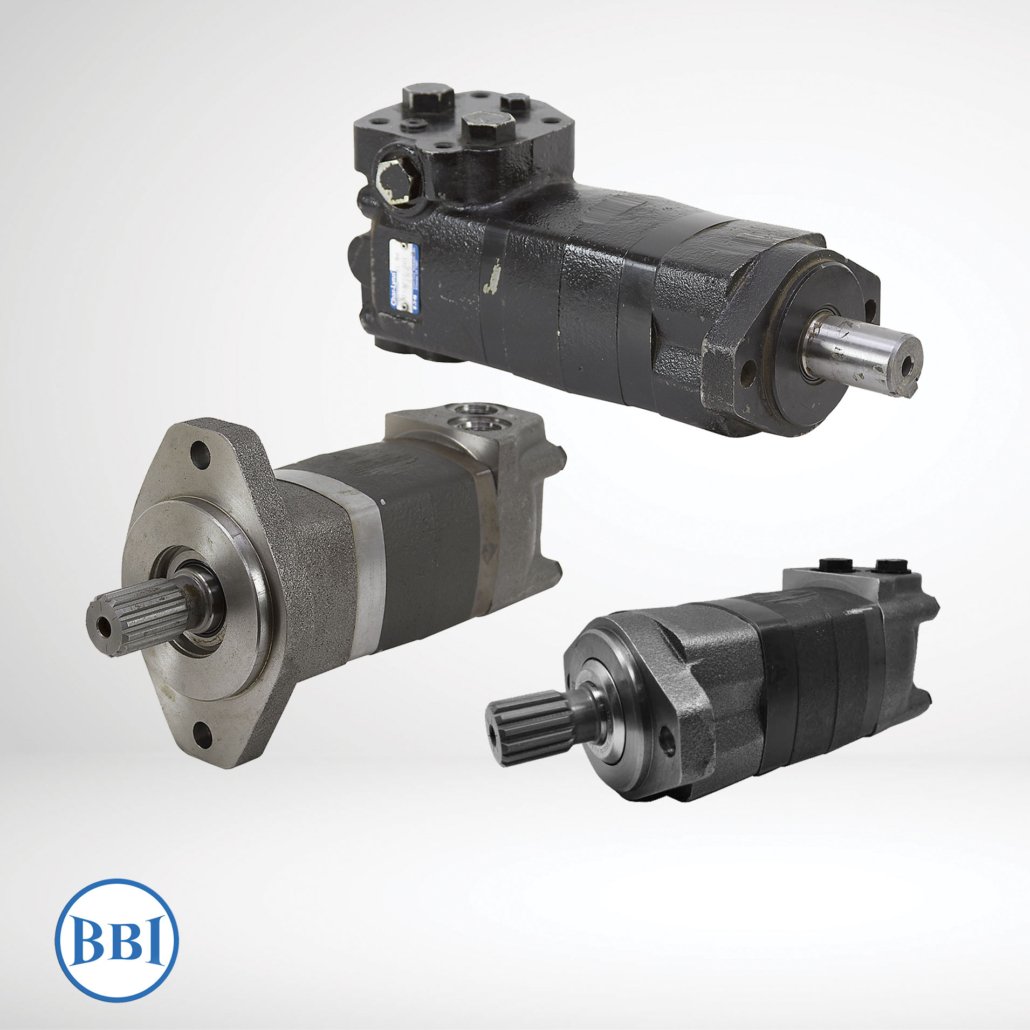

Gear Motor
Flow rate 76 L / MIN Speed up to 1000 RPM Torque range up to 565 Nm Wide variety of optional shafts, mountings, ports, displacements
Gear Motor
Speed up to 900 rpm Torque range up to 3,390 Nm Wide variety of optional shafts, mountings, ports, displacements, Speed sensors and bolt on valves Two speeds are available in series 2,000 and 10,000.

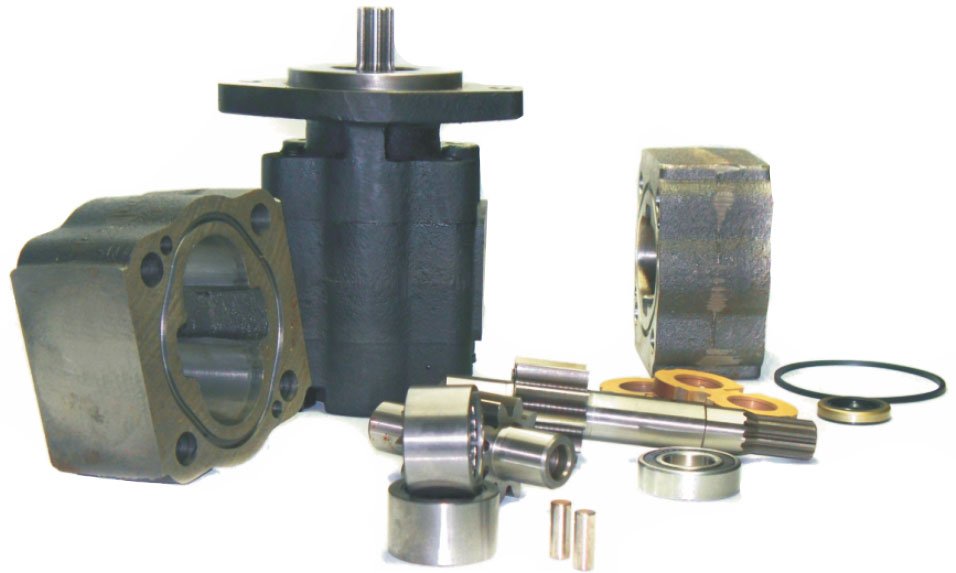

Gear Pump
This eguipment divides a single oil flow input into several output streams, in direct proportion to the gear widths used The Rotary Flow Divider also acts as an intensifier, transferring energy from total oil flow to that portion being used
Gear Pump
Working pressures to 2500 psi Speeds up to 2400 rpm Robust cast iron construction A wide selection of standard shaft and mounting configuration Multiple sections are available Optional priority, two-speed, and unloader valves are available Single and Multiple pump/motor, Flow Divider, Piggyback and Winch Motor configurations are available
Gear Pump
Working pressures to 3500 psi Patented interlocking body design Bronze thrust plates Tandem, triple and cross-frame pumps available Wide range of integral valves for power steering, power brakes, fan drives and implement hydraulics Reduced system noise levels compared to earlier models and competitors’ pumps High power through-drive capability
