Directional Control Valve
Wet-pin AC or DC solenoids Solenoids with detachable coil For subplate mounting (“P”): Porting pattern to DIN 24340 form A and ISO 4401 Electrical connection as individual connection or central connection Optional inductive position monitoring (RE 24830) Smooth switching characteristics

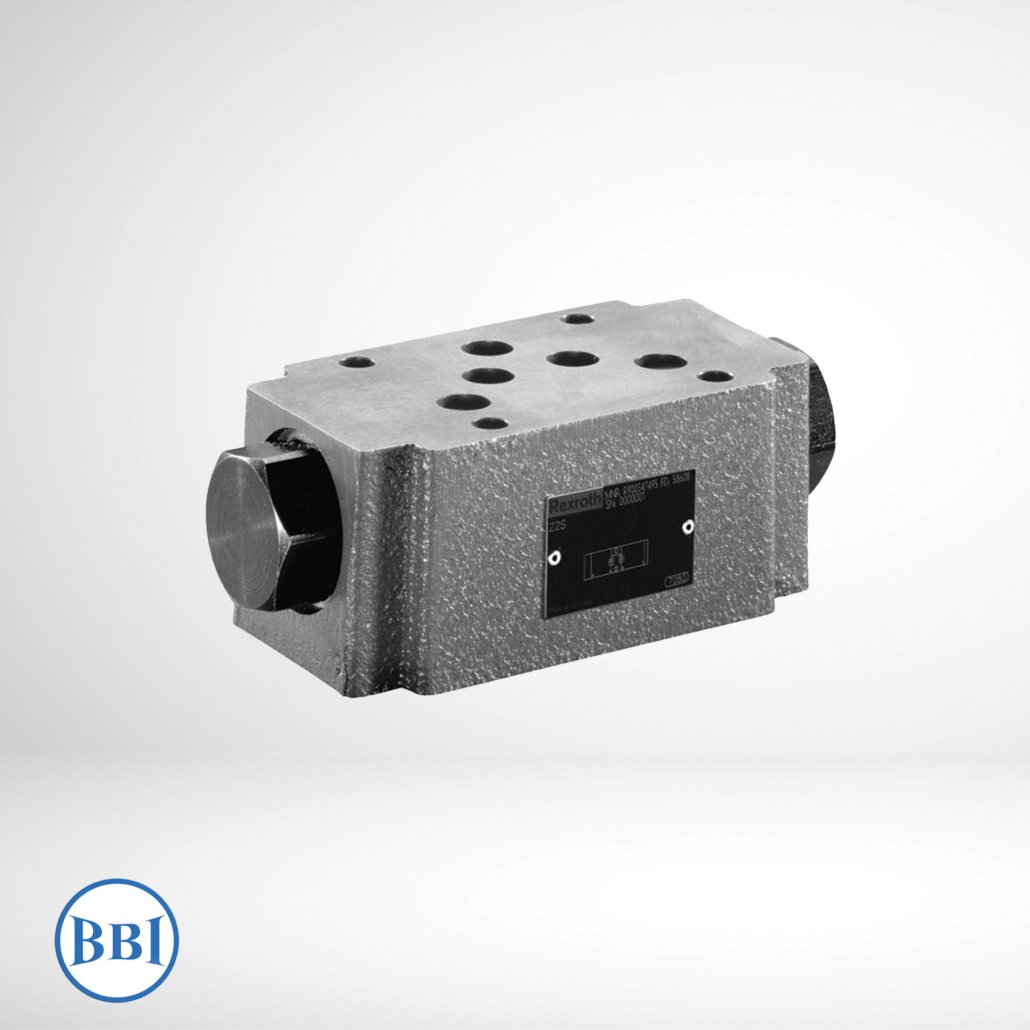

Check Valve
Sizes 6 to 22 Porting pattern to DIN 24340 form A and ISO 4401 For the leak-free isolation of one or two actuator ports Various opening pressures

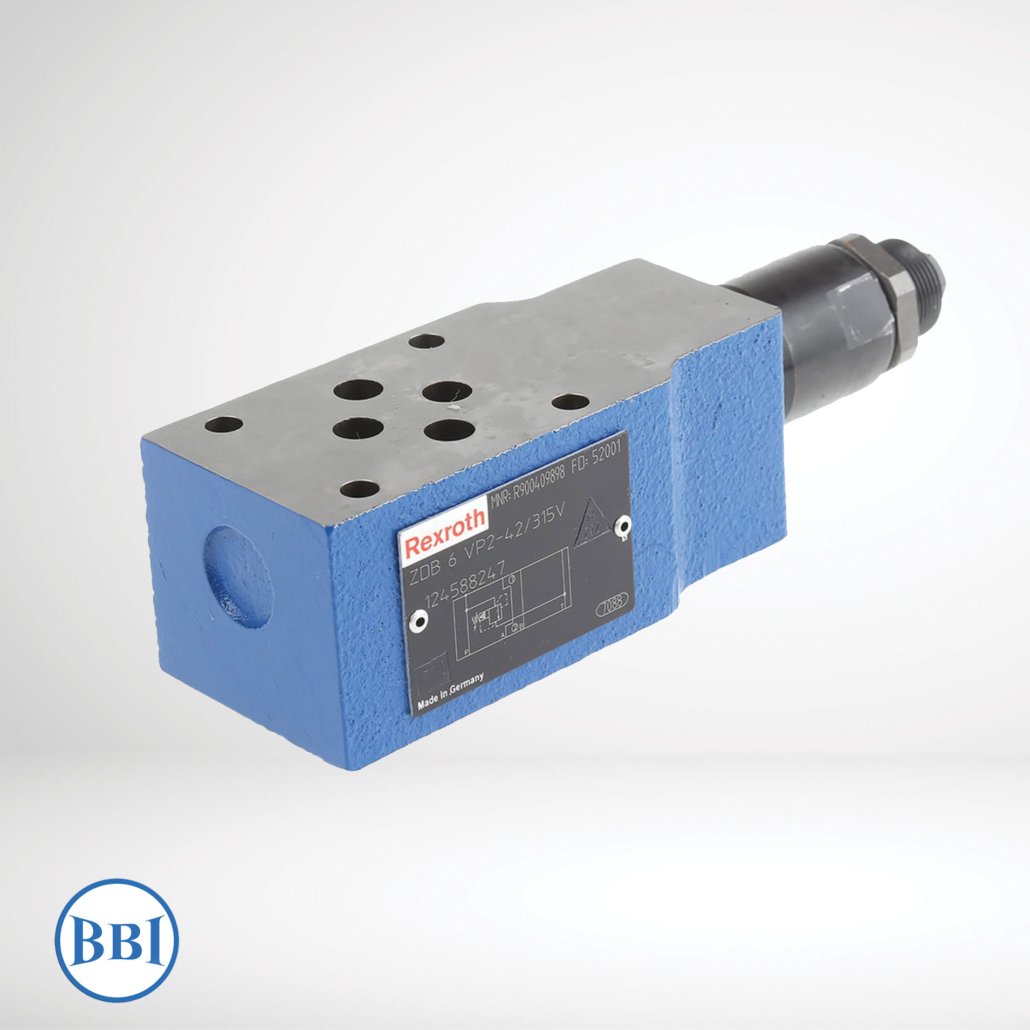

Relief Valve
Sizes 6 and 10 Porting pattern to DIN 24340 form A and ISO 4401 4 pressure stages: 50, 100, 200, 315 bar 5 pressure relief functions: A – T, P – T, B – T, A – T and B – T, A – B and B – A
Directional Control Valve
Max. flow rate 40 to 50 l/min (11 to 13 GPM) Max. Operating Pressure 4260 to 4600 PSI (300 to 320 bar) Max. Back Pressure 285 to 420 PSI (20 to 30 bar) Also available with Coil controls instead of hand sticks

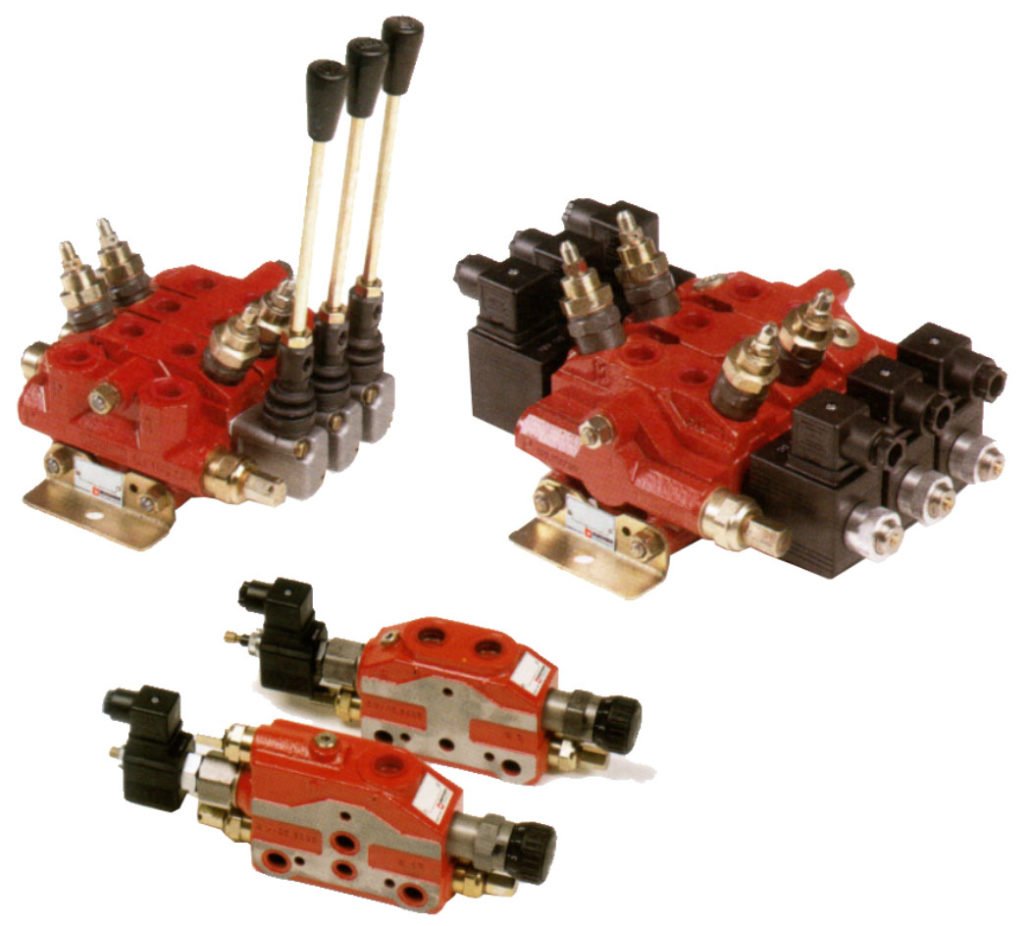

Directional Control Valve
With one (HDM140) or three (HDM11P/HDM11S/HDM18) hand control sticks Max. Flow Rate: 40 – 70 l/min (10 – 18 GPM) Max. Operating Pressure 4600 – 5700 PSI (320 – 400 bar)

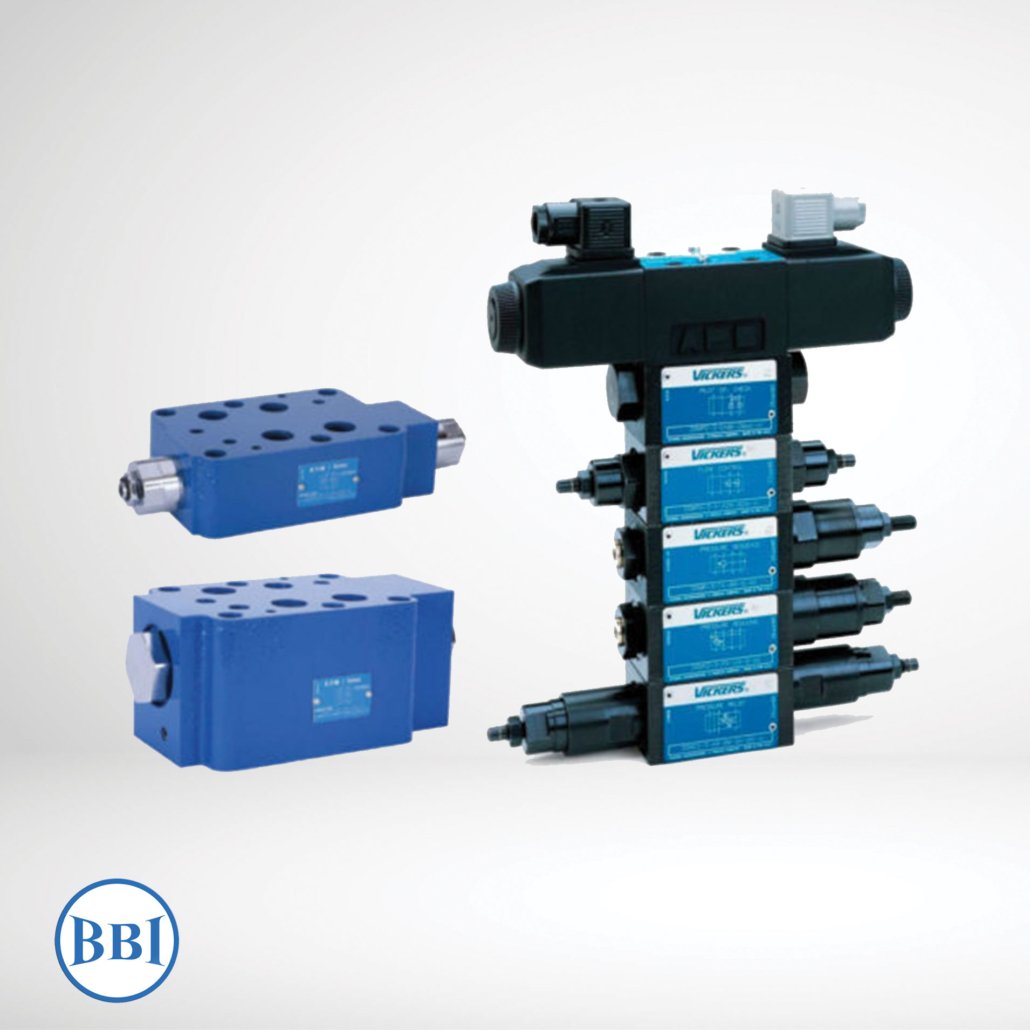

Modular Valve
Relief, sequence, reducing, check and flow control valves ISO cetop 02, 03, 05, 07, 08 sizes Flows to 340 l/min Pressures up to 310 bar

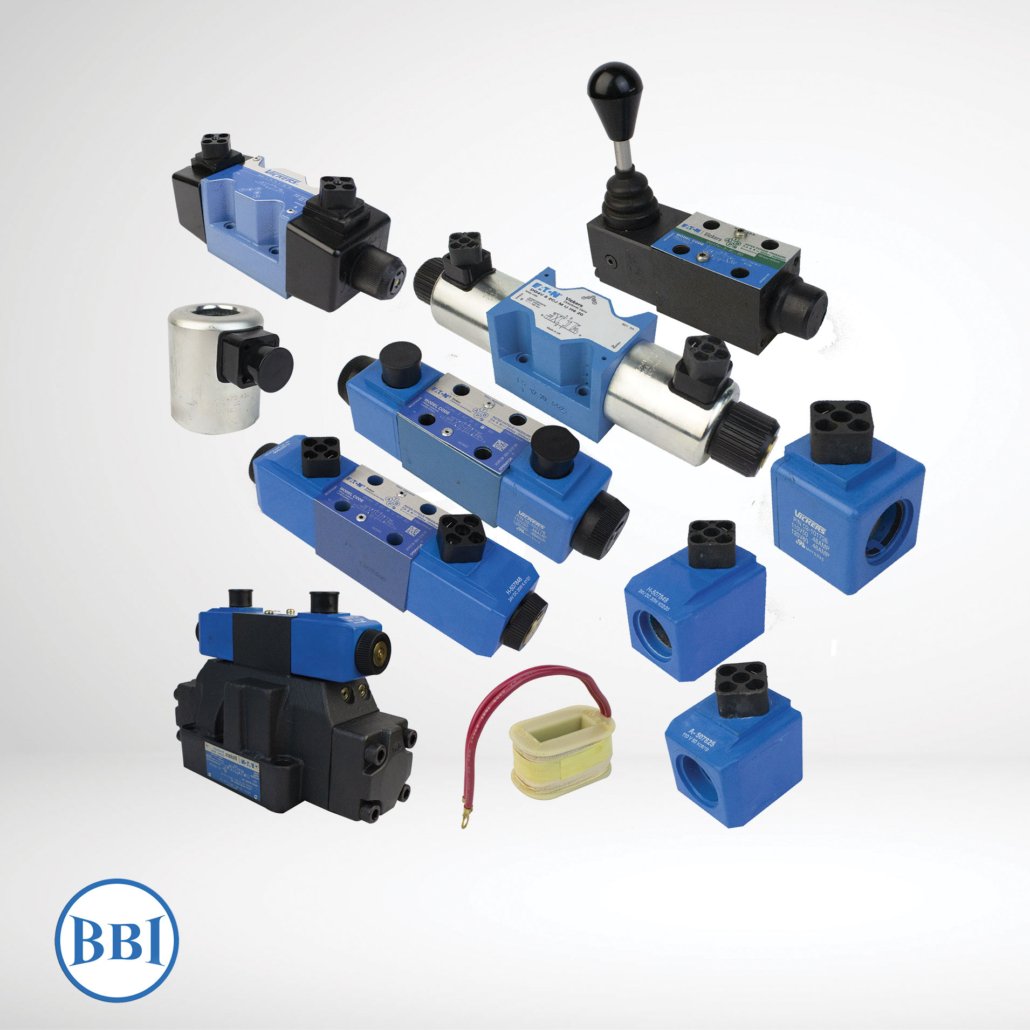

Directional Control Valve
Pressures up to 350 bar Flows to 1100 l/min Various sizes and operators: solenoid, hydraulic, air, cam or lever to meet a wide range of applications
Power Take Off
Two-gear Three shift options Dual pump output available

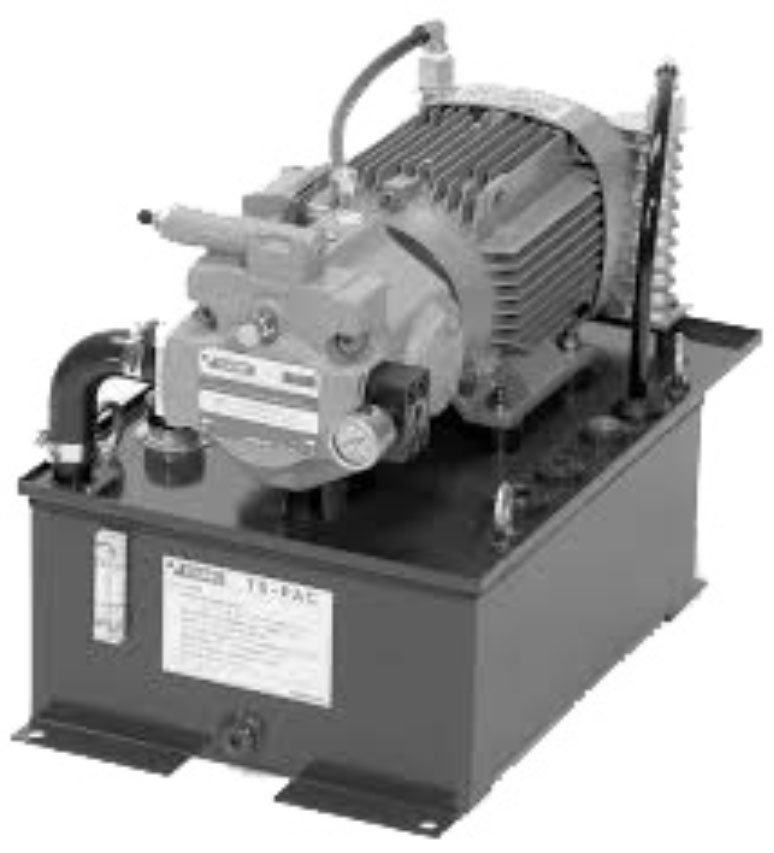

Hydraulic Power Pack
Low pressure pulsations for quiet running Continuous pressures to 250 bar Speeds to 3000 rpm Low noise and wide range control options Many configuration offered, including with integrated valve

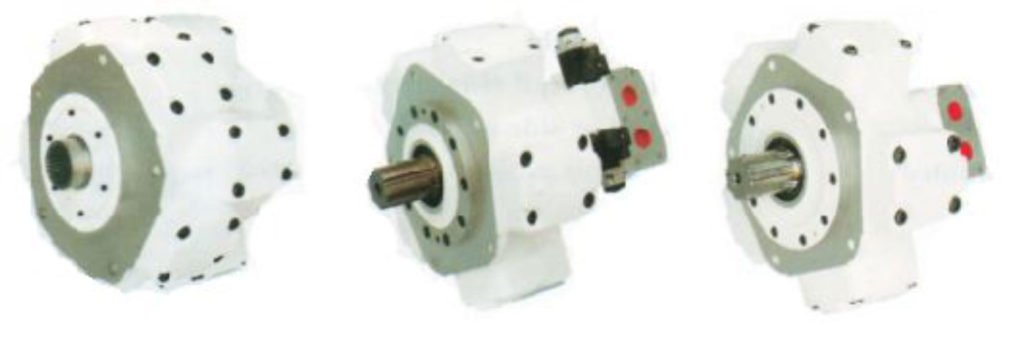

Piston Motor
High starting torque from 90% to 95% of theoretical High contol at low speed High volumetric efficiency up to 98% Low noise Resistance to thermal shocks Long bearing life Reversibility Speed accessories, brakes Speeds up to 1000 RPM
