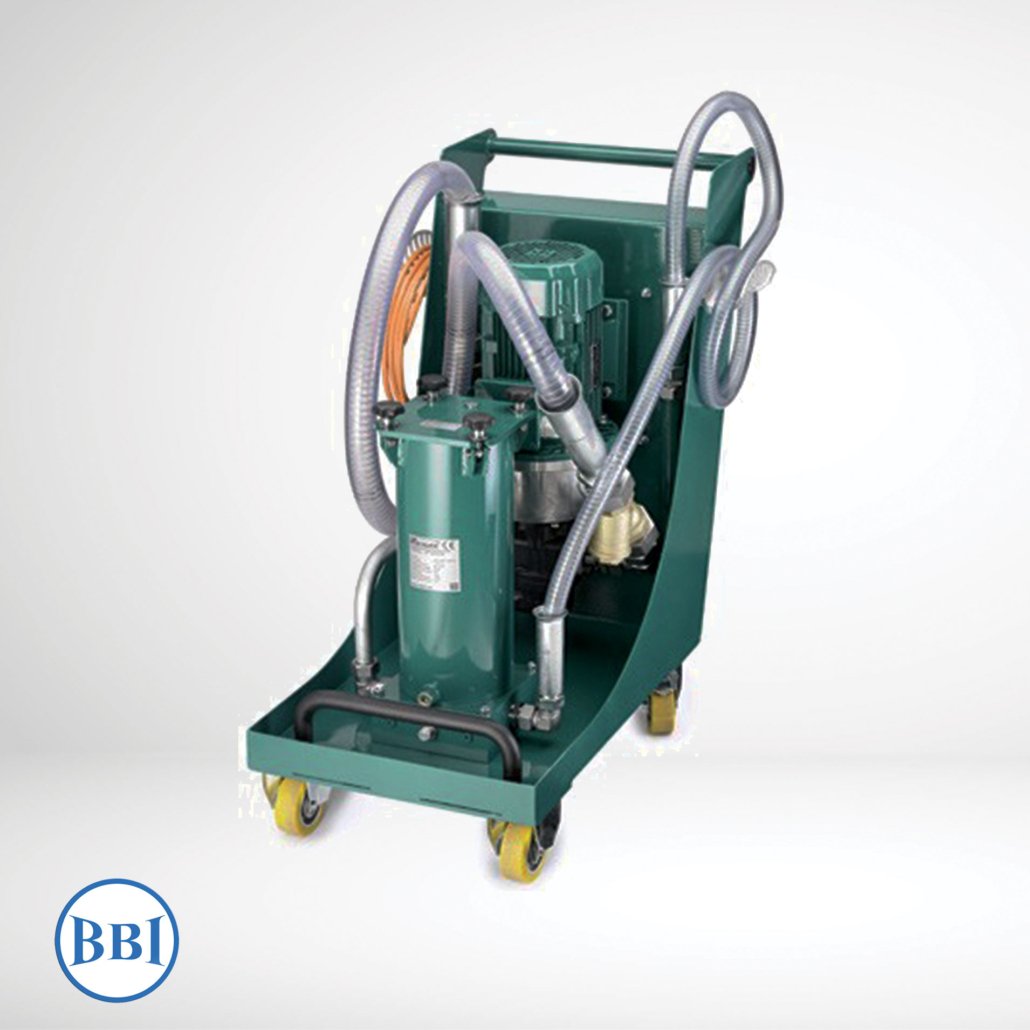

Offline Filter
High nominal flow rates by using high-quality gear pumps and energy-efficient, high-performance three phase motors suitable for continuous duty cycles, and long term operating times Nominal flow rate: 60 l/min (15 US GPM) Motor unit: 400 V; 50 Hz Micron rating available from 3 μm to 125 μm Weight approximately: 165 kg/ 364 lbs

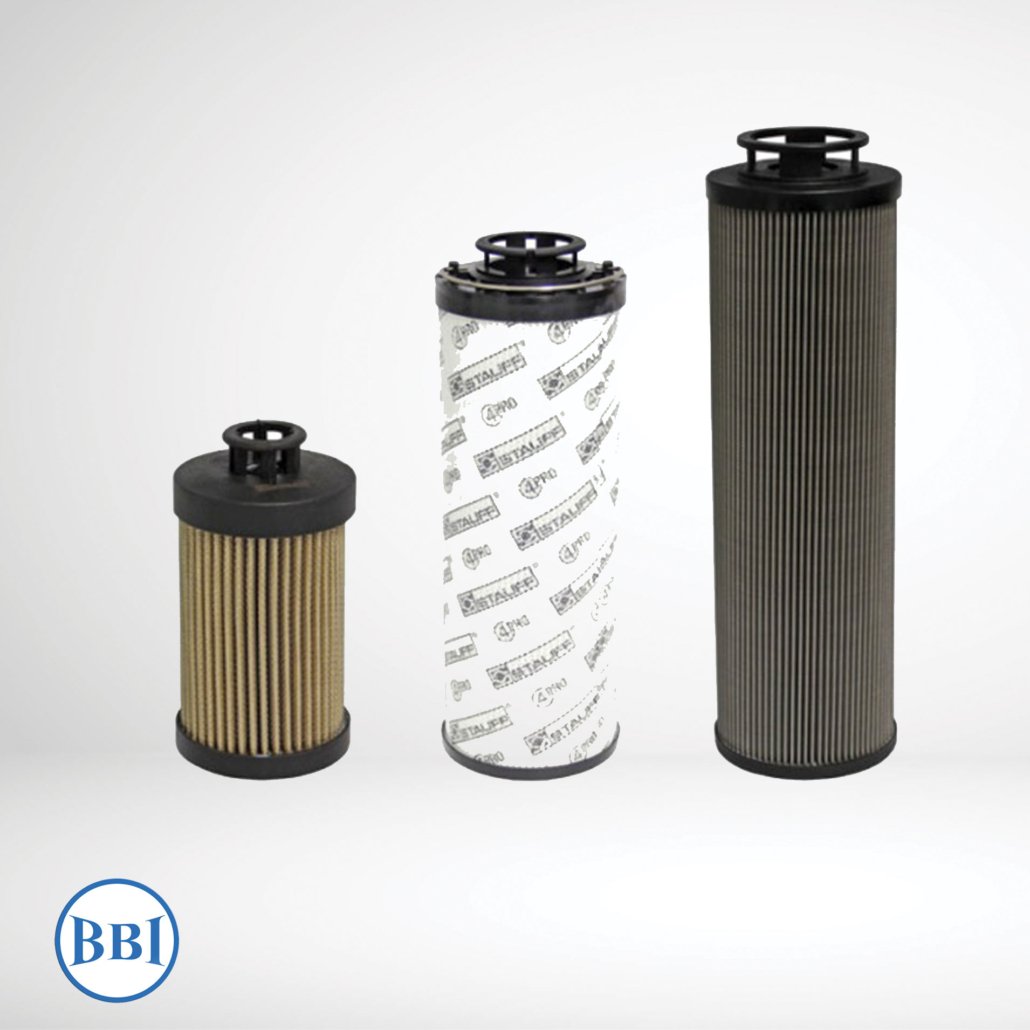

Filter Element
Maximum resistance: 5 to 10 bar (72 to 145 PSI); with collapse/burst resistance as per ISO 2941 Sealing material: NBR Connection thread: BSP / UNF / NPT Filters material: Wire Mesh, Brass Mesh, Filter Paper, Inorganic Glass Fibre, Stainless Wire Mesh and Water Absorbing Filter Material Temperature range: -30° C to +100° C

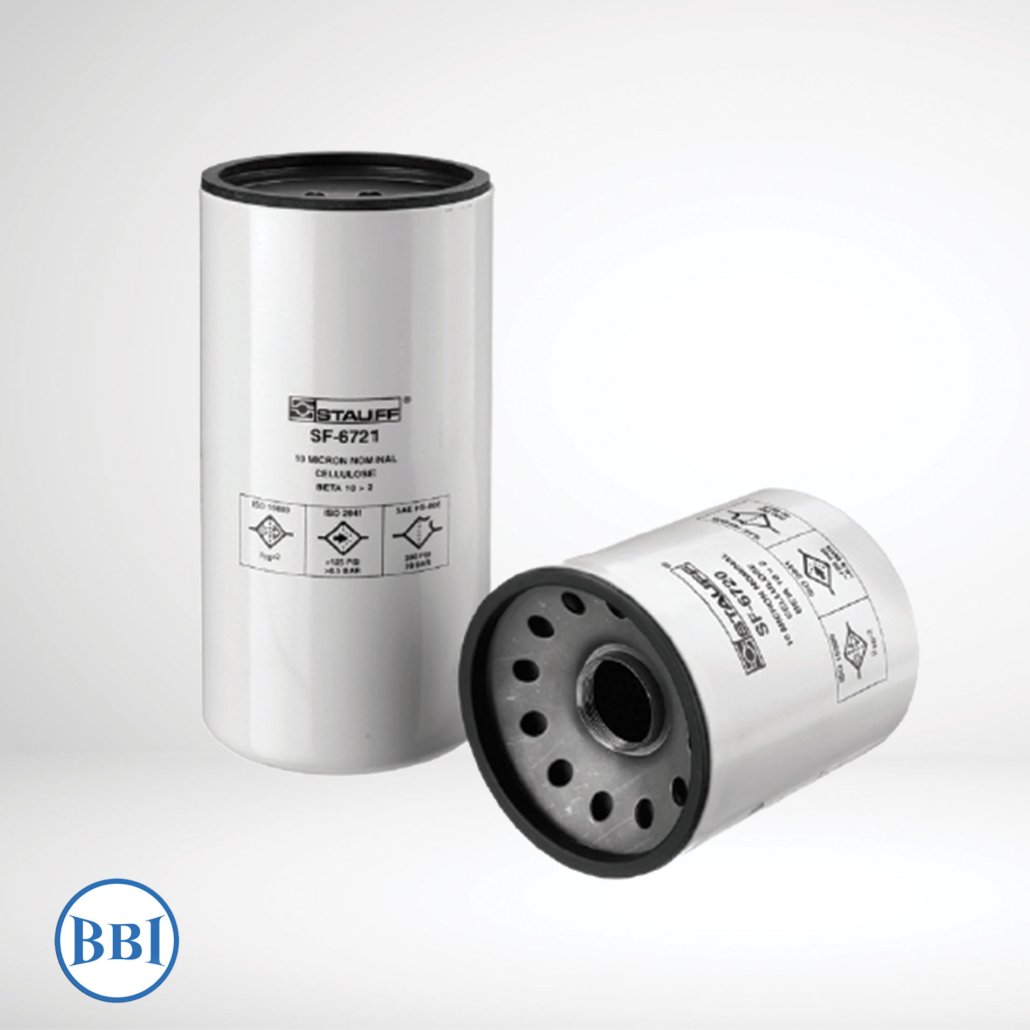

Filter Element
Filter media: Inorganic Glass Fibre, Polyester Fibre, Cellulose Fibre, Stainless Fibre, and Stainless Mesh Micron rating: 3 μm to 1000 μ (different rating range for each media; alternative micron ratings on request) Maximum resistance: 10 to 25 bar (145 to 362 PSI); with collapse/burst resistance as per ISO 2941 Sealing material: NBR, FKM/FPM, and EPDM […]
Filter
Designed as Tank Top filters, with flange mounting construction Port Connection: BSP, NPT, SAE O-ring thread, and SAE flange Maximum Operating Pressure at 6,9 bar (100 PSI), with Flow Rating up to 378 l/min Temperature Range: -25° C to +95° C Available with Bypass Valve and Clogging Indicator

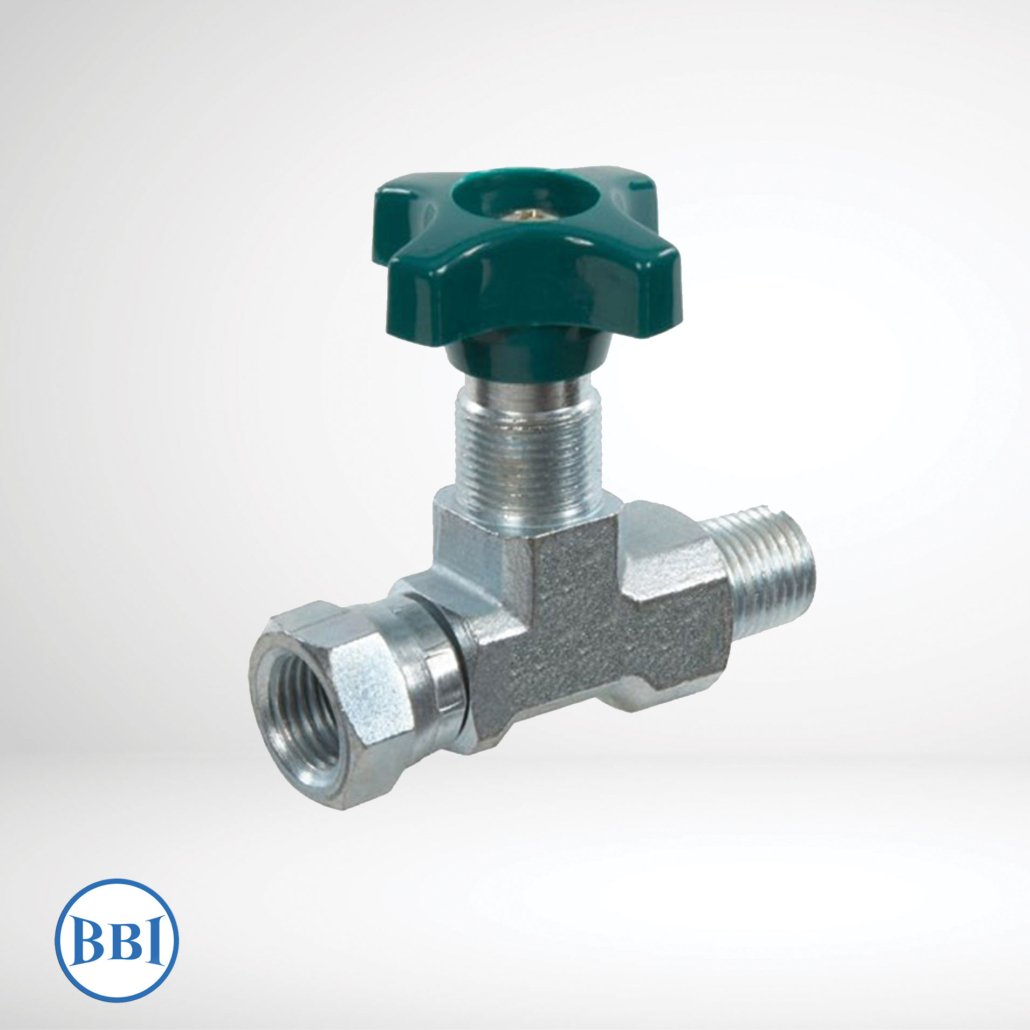

Needle Valve
Designed for in-line assembly (type A1) or 90° assembly (type A2), with female BSP/male BSPT, female NPT/male NPT, or female NPT/male SAE threaded connections Panel mounting nuts available on request Rotating swivel nut allows for accurate orientation of the pressure gauge Maximum operating pressure: 400 bar / 5800 PSI (for all sizes) Operating temperatures: -20° […]

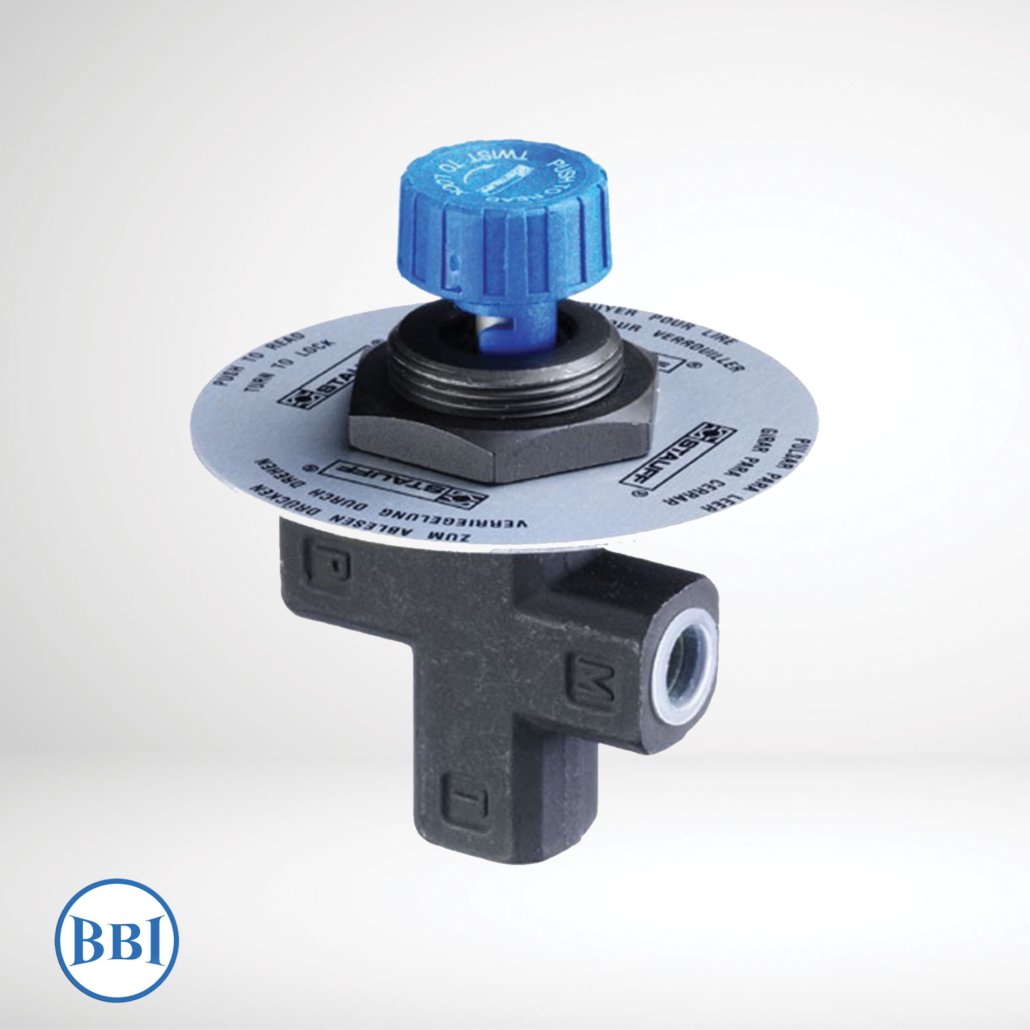

Isolator Valve
Suitable for panel instalation (for bulkhead instalation use the Multi-station type instead) Maximum panel thickness of 5 mm / 0.20 in Female BSP or NPT connections thread type Maximum operating pressure: 400 bar / 5800 PSI Operating temperatures: -30° C to +115° C Single station complete with gauge

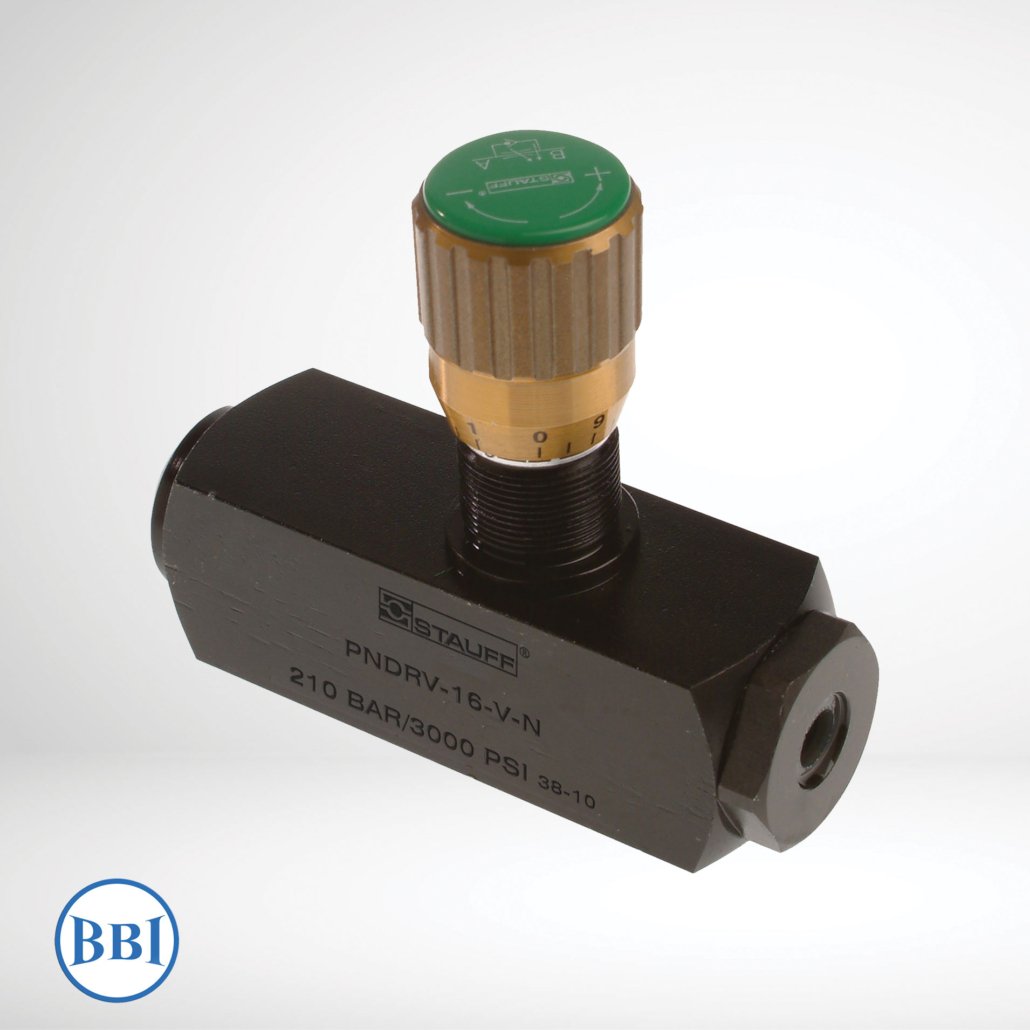

Flow Control Valve
Throttle and shut-off the flow of liquid media in direction A-B (free flow in reverse direction) with pressure compensating feature via built-in compensating piston Designed for in-line assembly with female BSP, NPT, and SAE threaded connections Maximum working pressure: 210 bar / 3000 PSI (for all sizes) Operating temperatures: -20° C to +120° C Minimum […]

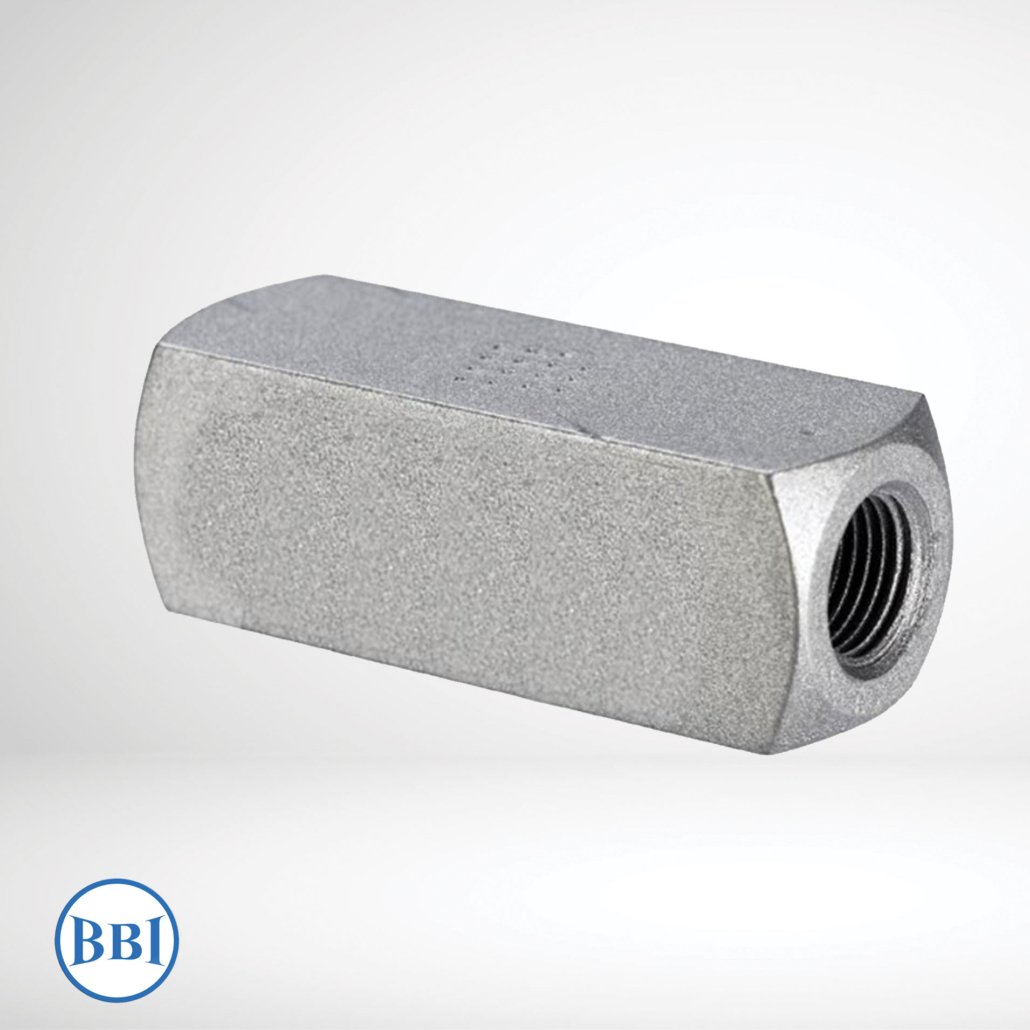

Check Valve
Allows a single-directional flow only Designed for in-line assembly with female BSP, NPT, and SAE threaded connections Metal-to-metal seat Maximum working pressure: 500 bar / 7250 PSI (depending on size) Operating temperature range: -20° C to +100° C Heavy-duty design with best material

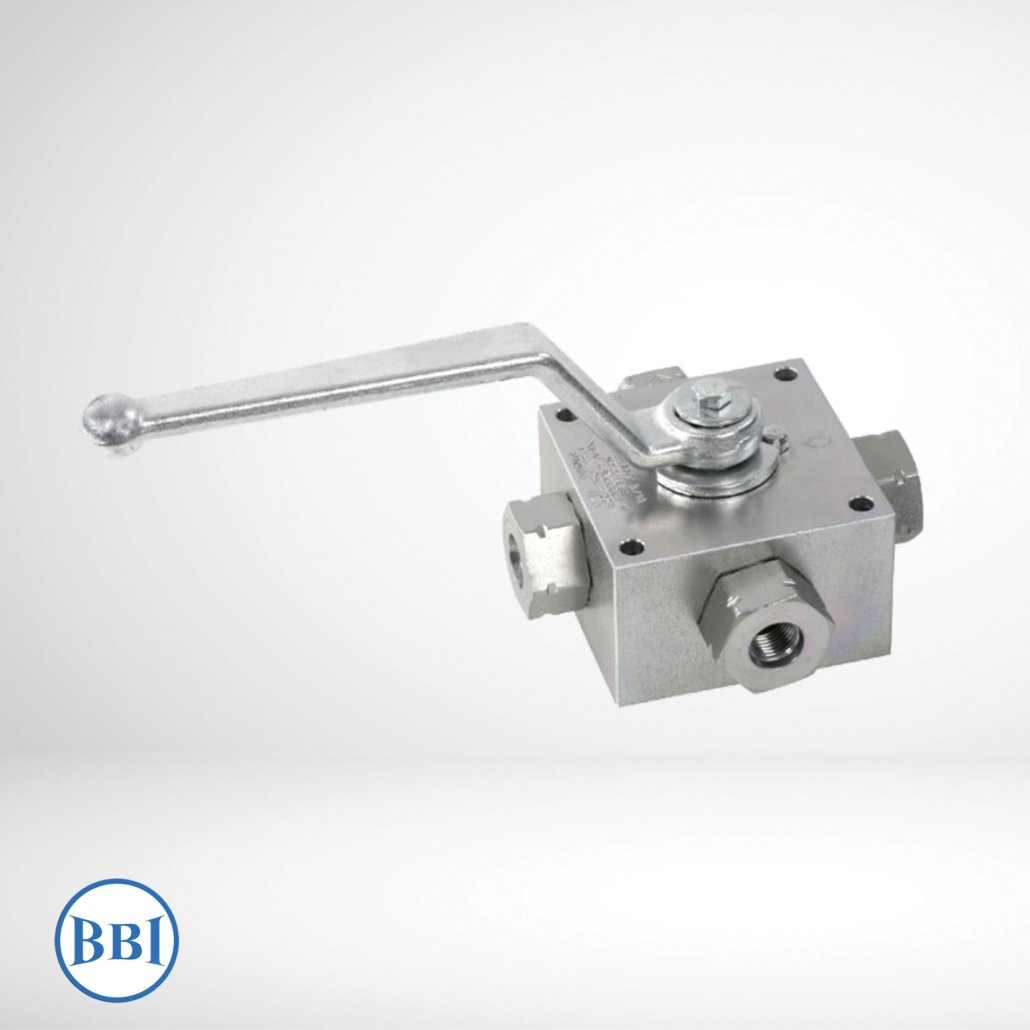

Ball Valve
Pressure inlet possible from all ports, and block body design for in-line assembly Material of body, ball, and stem can be Carbon Steel or Stainless Steel, while lever can be Aluminium or Zinc Special ball seat and O-ring materials available for lower/high temperatures and more aggresive media Pressure range: up to 500 bar / 7250 […]
Hose Connector
Available type are Push-to-Connect, Screw-to-Connect, and Flat face couplings, complete with needed spare parts/accessories Housing material are Steel, with Zinc-Plating and Chrome III coating Coupling coated with Zinc-Nickel, can be operate in temperature from -20° C to 200° C On request, material can be Plastic Construction for spesific need of the quick couplings Also have […]
