Hydraulics Tester

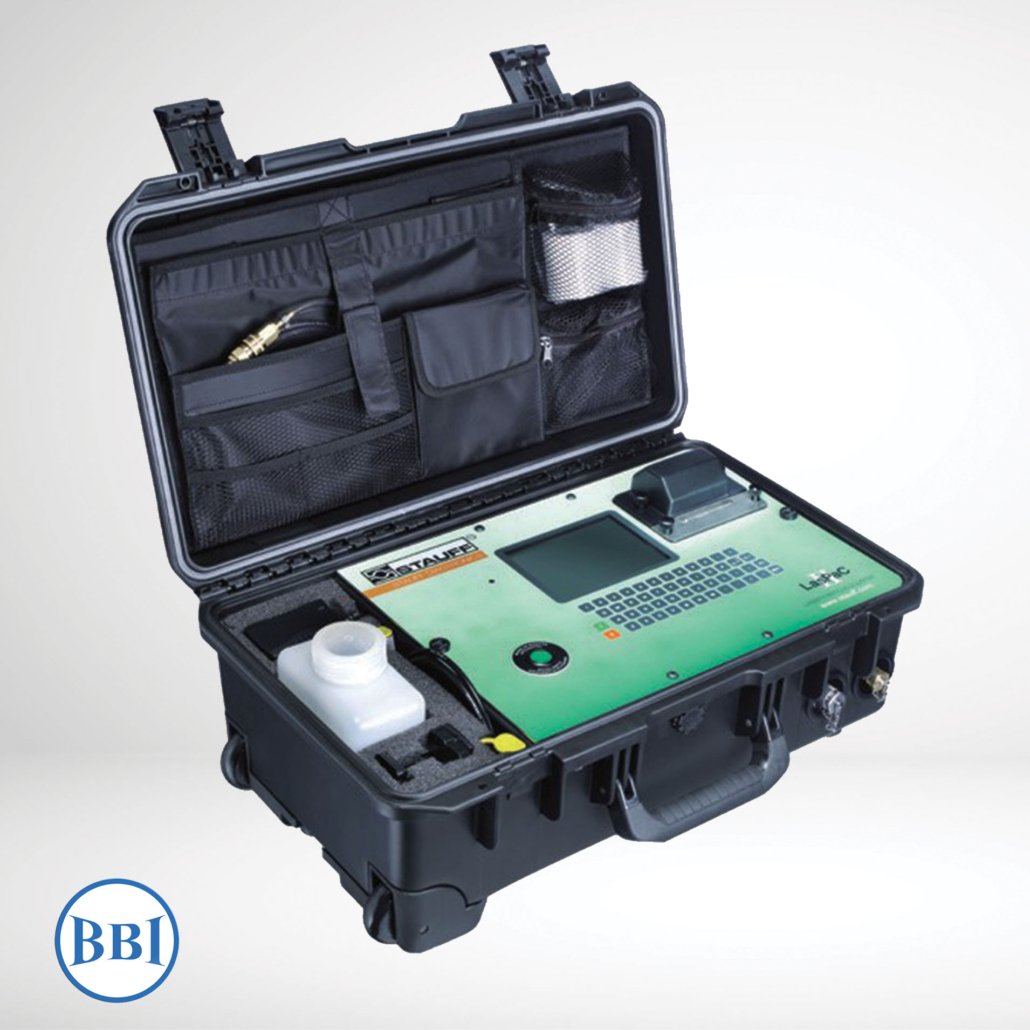

The Laser Particle Counter type LasPaC-II-P (Portable) is the most complete way to measure the contamination level of oil systems, by having the ability to measure, analyze and documented the results immediately without the need of additional equipment Fluid compatibility are Mineral Oil and Petroleum based fluids, while Phospate Ester and Water Glycol compatible devices […]
Hydraulics Tester

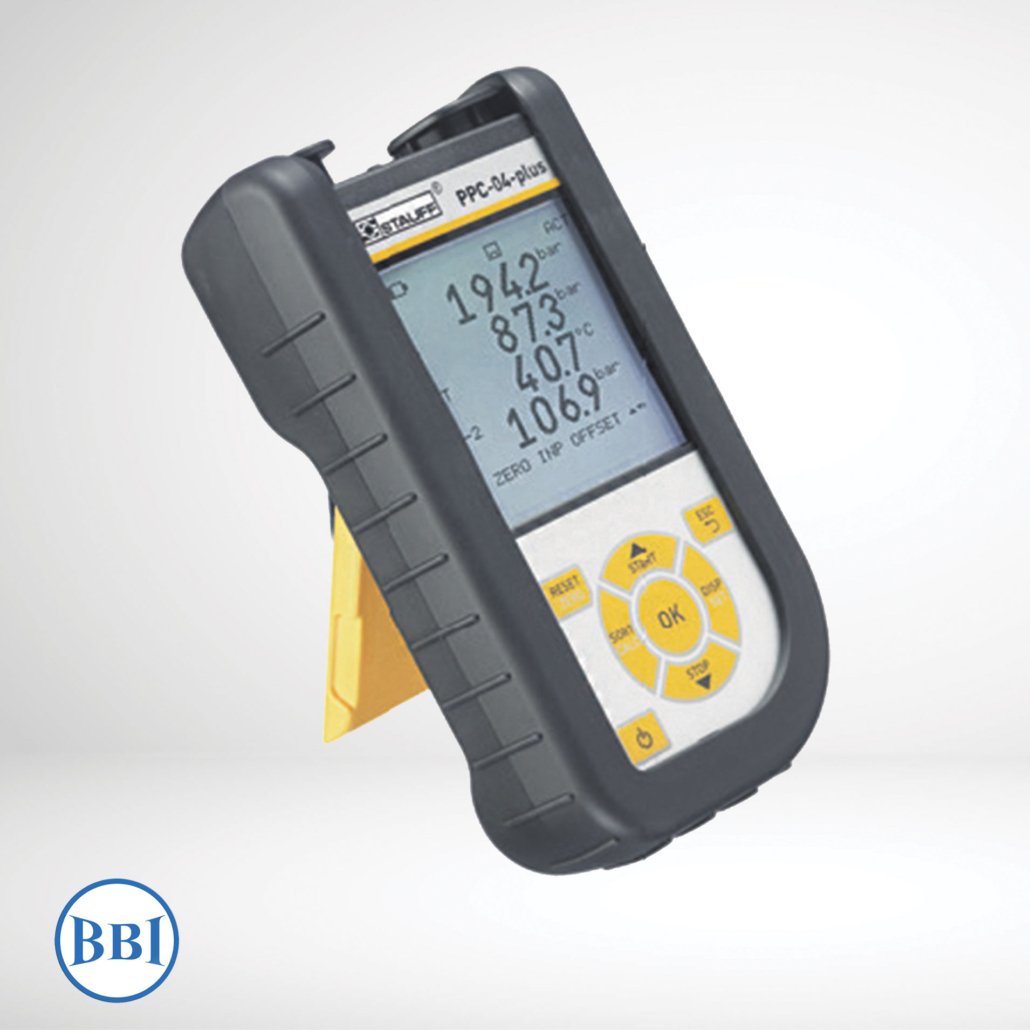

Perfectly suited for the precise determination of pressure, temperature, volume flow and rotational speed With CAN interface, the standard PPC-04-plus which analogue version type is upgraded into digital version, and can be connected up to three sensors at the same time instead of two Due to its extremely robust construction and oil-resistant coating, the Hydraulic […]
Hydraulics Tester

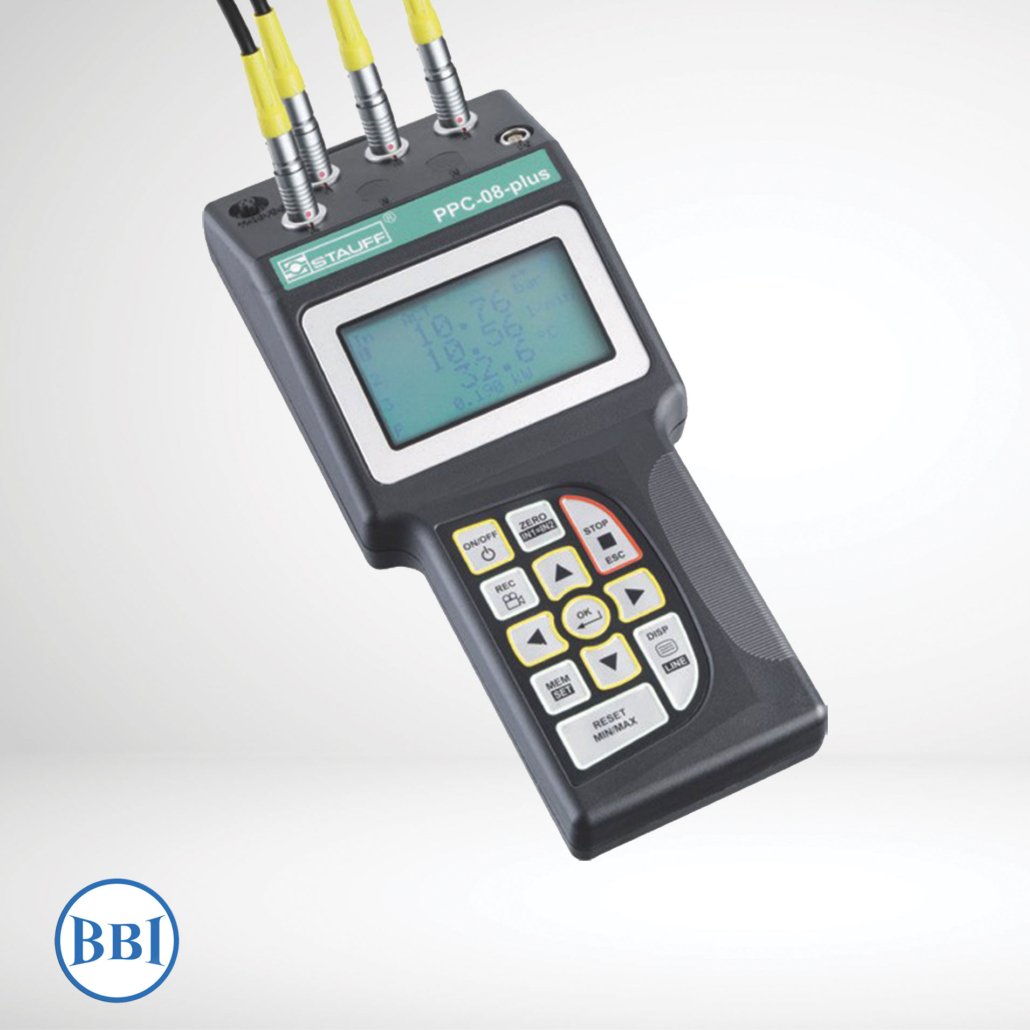

The PPC-06 / 08-plus Hydraulic Testers have been especially developed for the growing demands of system monitoring and troubleshooting in hydraulic and pneumatic systems PPC-08-plus have 4 sensor inputs, while PPC-06-plus have 3 sensor inputs Both Hydraulic Testers can measure, store and process all relevant hydraulic parameters such as pressure, differential pressure, temperature, rotational speed […]
Hydraulics Tester

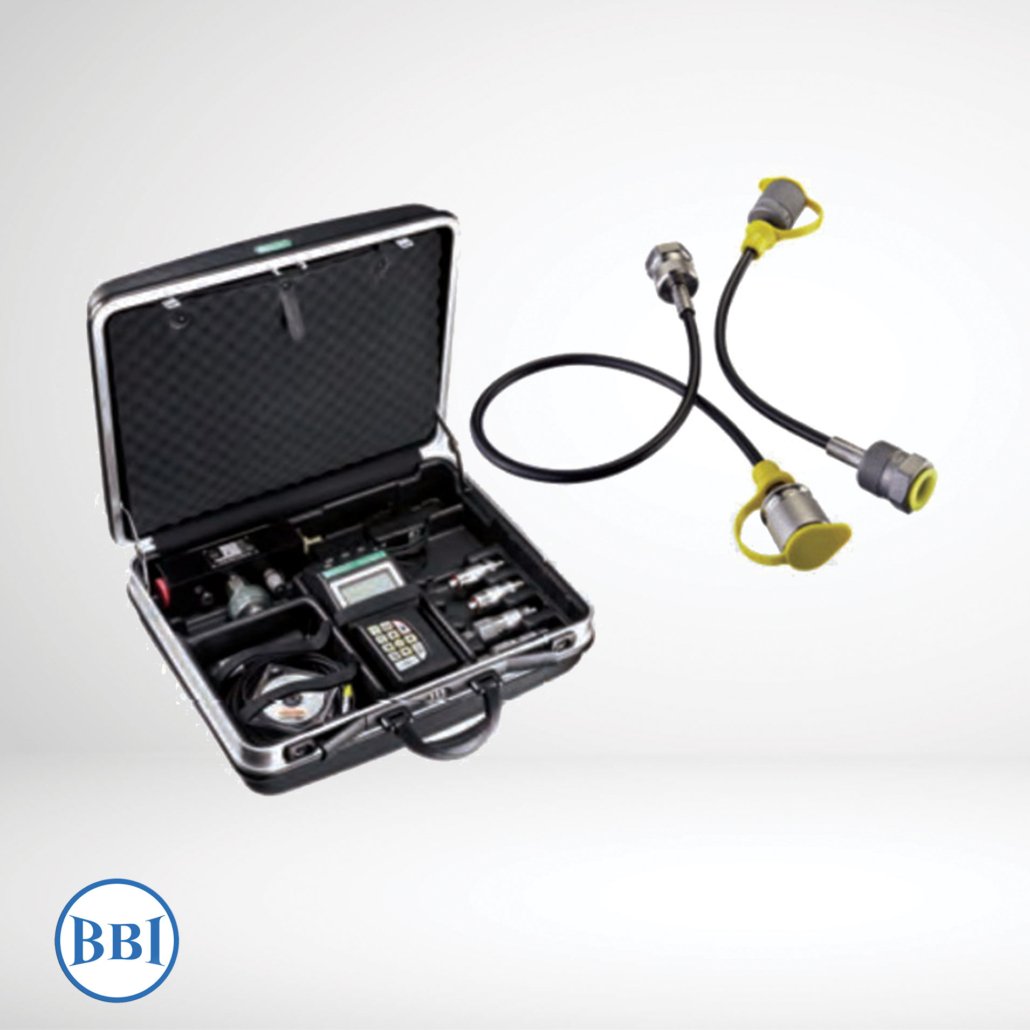

Unit includes Speed sensor, Flow sensor, Temperature sensor, and Pressure sensor Suitable connect to PC for data analysis Maximum working pressure: 630 Bar Maximum Temperature: +200° C Media: suitable for hydraulic oil & mineral oil base
Test Coupling

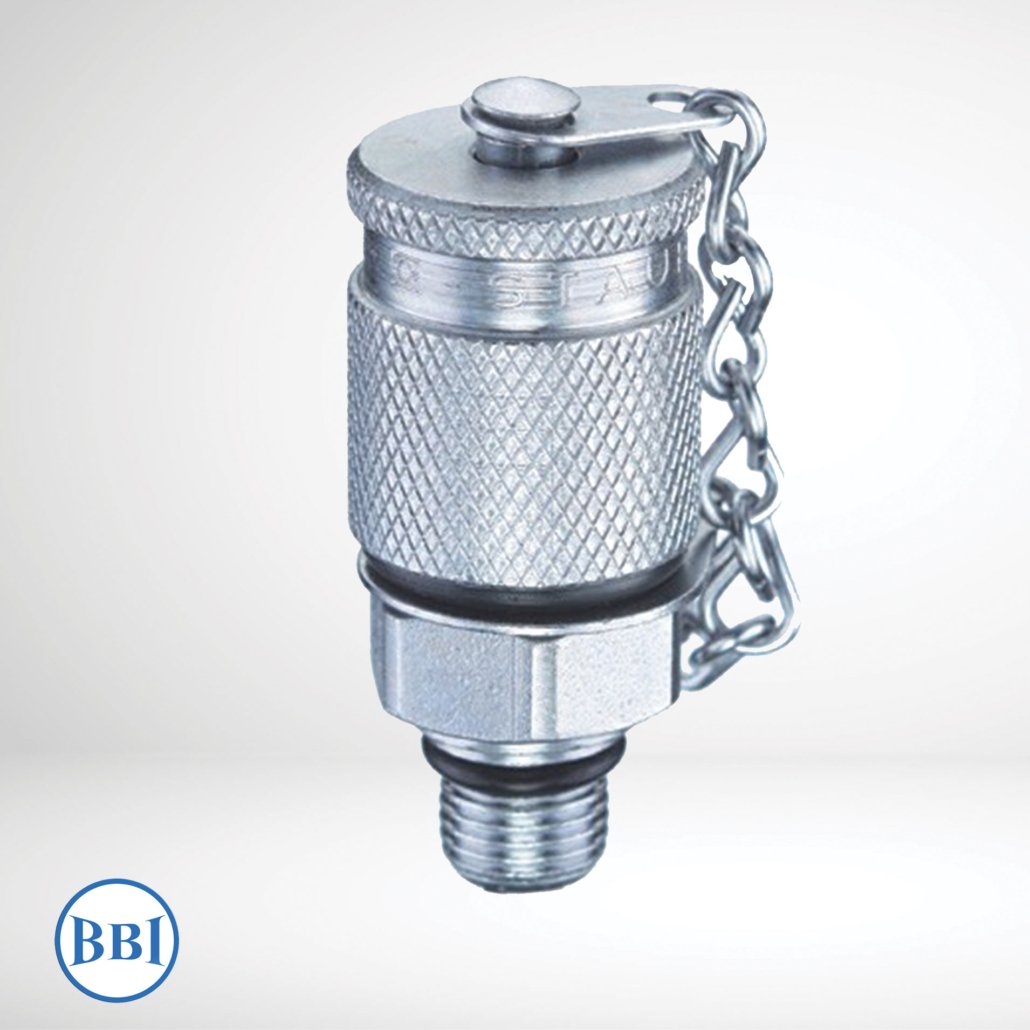

Test coupling with Piston Valve Material: Steel or Stainless Steel Seal type: O-ring, Metal Joint, Elastomeric, or Taper Protection Cap: Knurled or Plastic Alternative materials and surface finishings are available upon request
Test Coupling
Test coupling with Piston Valve Connection: Straight 24° Fitting Comes in Light and Heavy series for different working pressures Material: Steel or Stainless Steel Fitting body can be supplied with union nuts and Cutting rings or Soft-sealing Cutting rings
Tank Accessories

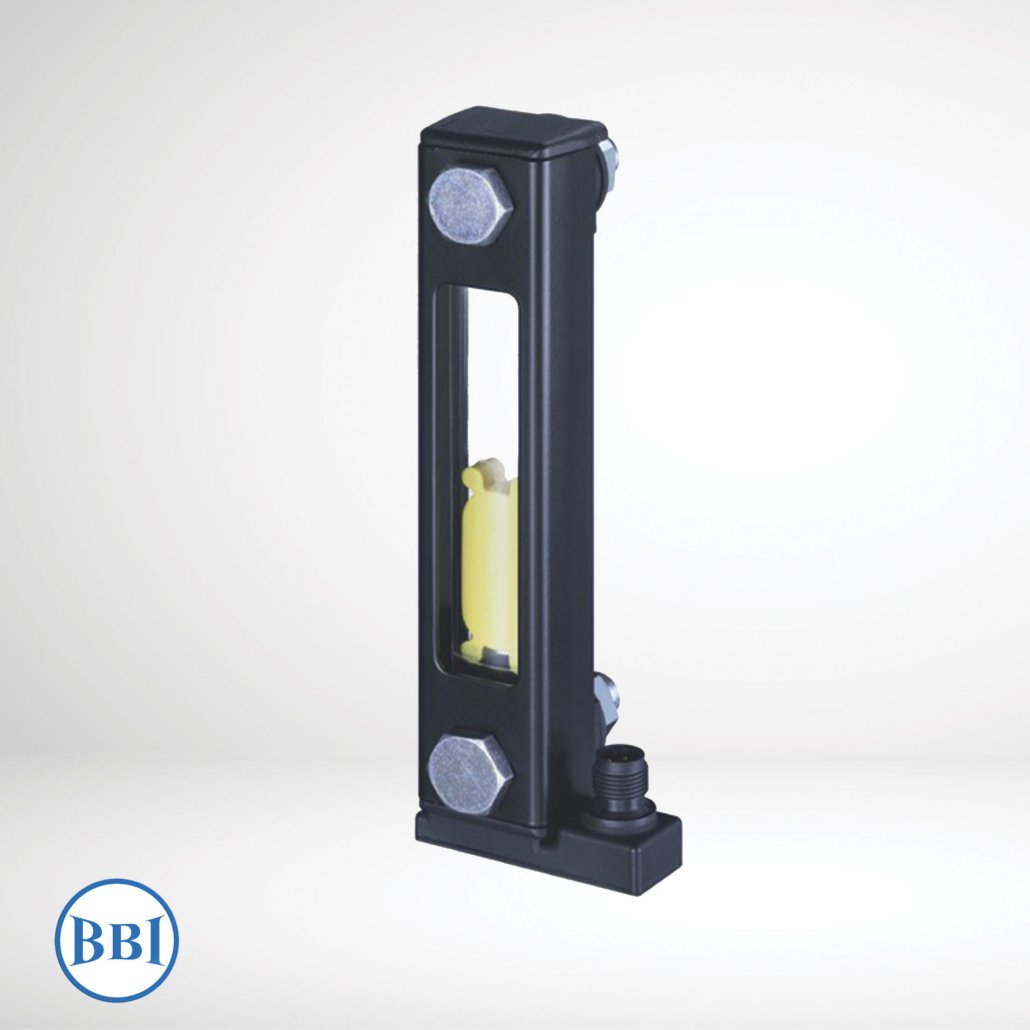

Visual / electrical fluid level indication in hydraulic reservoirs with maximum tank pressure not exceeding 2 bar/ 29 PSI; ideal for application in which space is limited Suitable for use with Mineral and Petroleum based hydraulic fluids (HL and HLP) Standard housing made of Aluminium, black powder-coated, while other materials for spesifics use are available […]
Tank Accessories
Designed to be used as filler ports for hydraulic reservoirs, allowing the reservoir to breathe whilst protecting it from contamination found in harsh environment Either for clamping installation (with 3 clamping jaws and cross-drive screws) or with a six-hole bolt pattern Operating temperature range: -40° C to +120° C Maximum Air Flow Rate : 1,00 […]
Tank Accessories

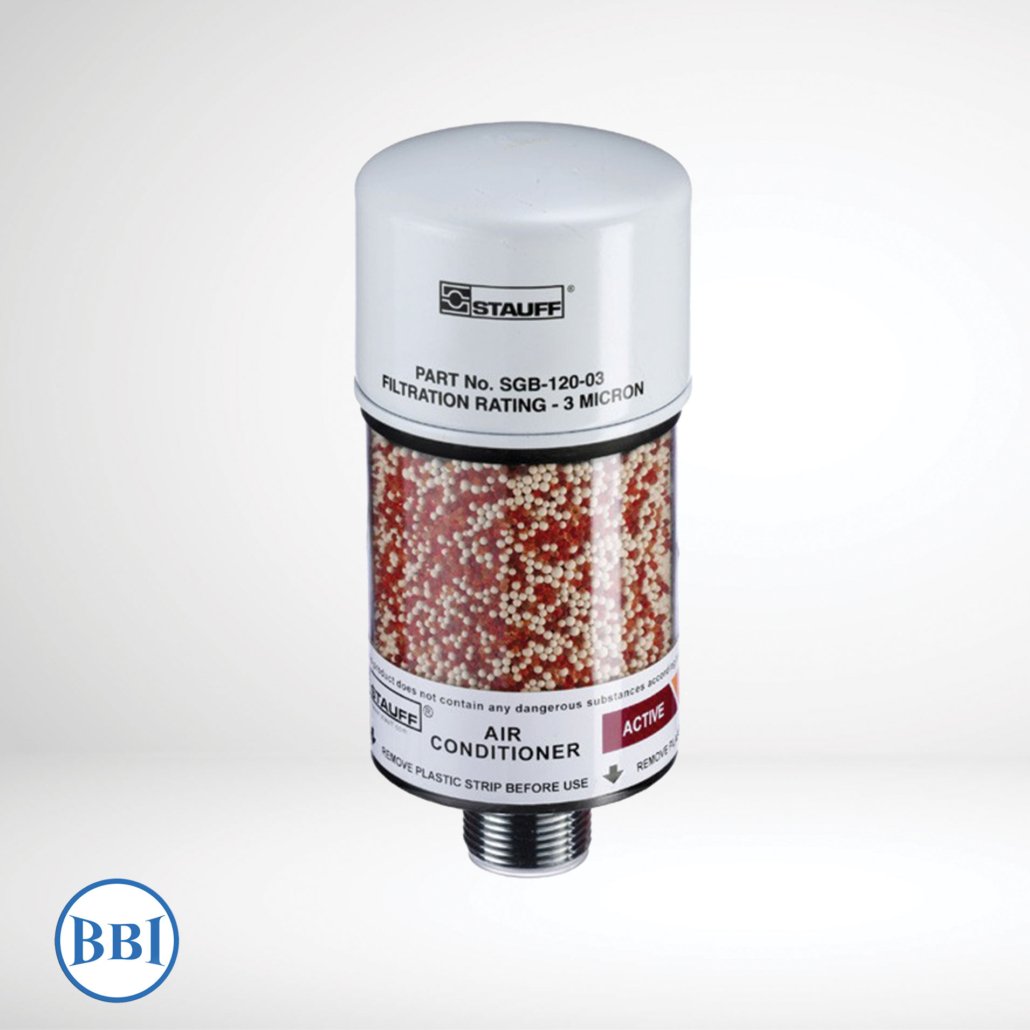

Combination of air breather and water removal filter, which dry the air from water vapor as a reservoir or gearbox breathes, then filtrated by 3 μm air filter element to remove any solid contamination particles Drying Agent are capable in changing colours with increasing moisture Connection: Male BSP thread (ISO 228) on Stainless Steel tube […]
Pressure Gauge

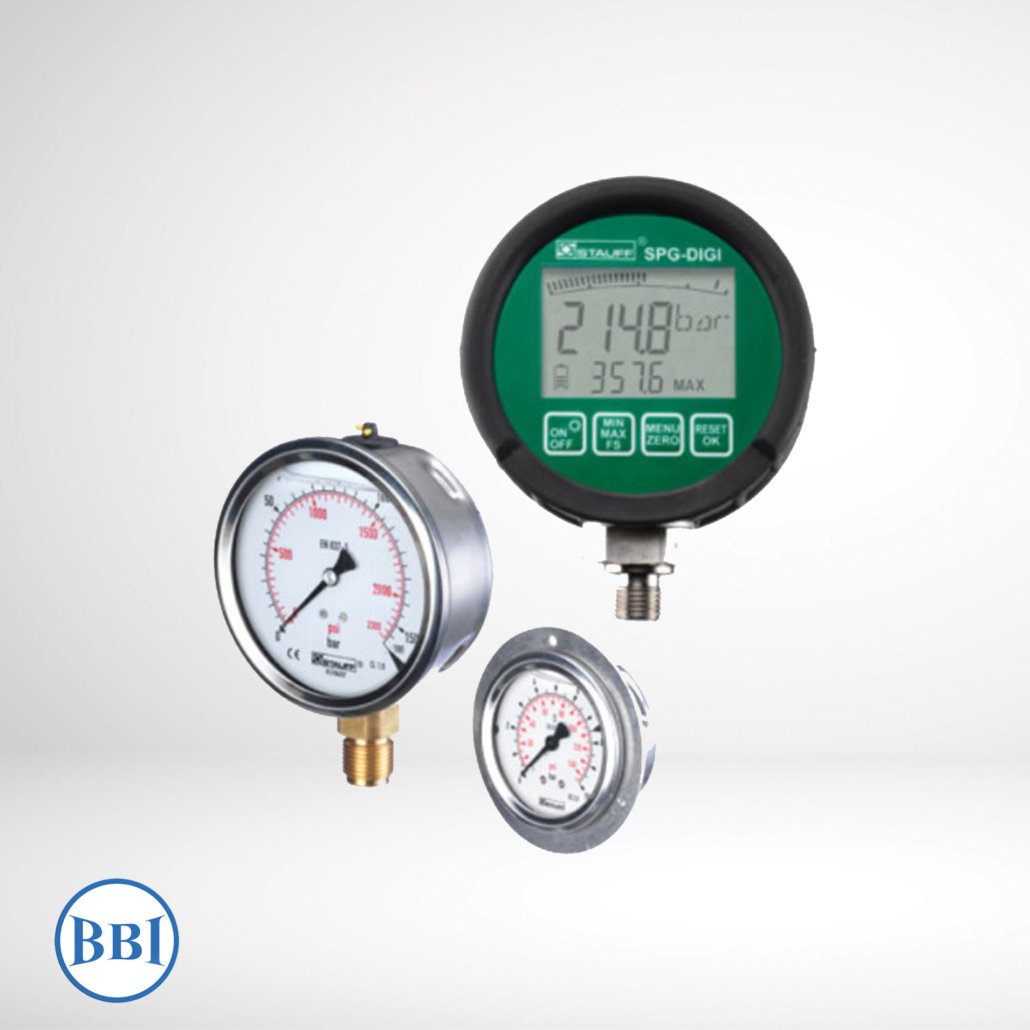

Stainless steel construction, can be complete with test point Quality ranges of 63 mm and 100 mm Dia Max. Pressure 1000 Bar Max. Temperature +60° C Accuracies +/- 0.5% – 1.6%
