Filter
NPT, SAE or flange ports High capacity/high efficiency Microglass II media Cartridge style bypass valve Visual and electrical indicators with several connector styles
Filter
Various mounting configurations High capacity/high efficiency Microglass II media Visual and electrical indicators with several connector styles Flange options for low profile, easy mounting Integral breather (FT Series)
Filter
Construction: Aluminium Lm24 head castings, steel bowl Seals: Nitrile Max working pressure: 8 bar Operating temperature: -30°C to + 90°C Port Sizes-head: Size 1 = G ½, Size 2 = G¾, Size 3 = G 1¼, Size 4 = G 2” SAE Port Sizes-bowl: Size 1 = G ½, Size 2 = G¾, Size 3 […]
Filter
Construction: Aluminium casting, steel bowl Max working pressure: 7 bar Operating temperature: -30°C to + 90°C By-pass crack pressure: 1 bar Indicator setting: 0.9 bar Filtration media: 10µ (Abs) glassfibre composite 25µ (Abs) nitrile phenolic resin-impregnated cellulose
Filter
Rated flow: up to 227L/min (60 USgpm) Fluid compatibility: Compatible with most petroleum oil, water glycol, oil-in-water and water-in-oil fluids Temperature range: -40°C to + 107°C (-40°F to + 225°F) Pressure rating: Operating 40 bar (600 PSI) for OFR series, 7 bar (100 PSI) for OFRS series Head material: Die cast aluminium Bowl material: Carbon […]
Filter
Spin-on filter: MPS, MST, and MSH series Max working pressure: 12 bar (MPS/MST), 35 bar (MSH) Flow rates: from 25-300 L/min (MPS/MSH), 25-350 L/min (MST) Element types: 3-90 micron (MPS/MST), 3-60 micron (MSH) Element media: glass fibre, resin-impregnated cellulose or wire mesh Indicator: visual or electrical (MPS/MST) differential visual, visual / electrical or electrical (MSH) […]
Filter

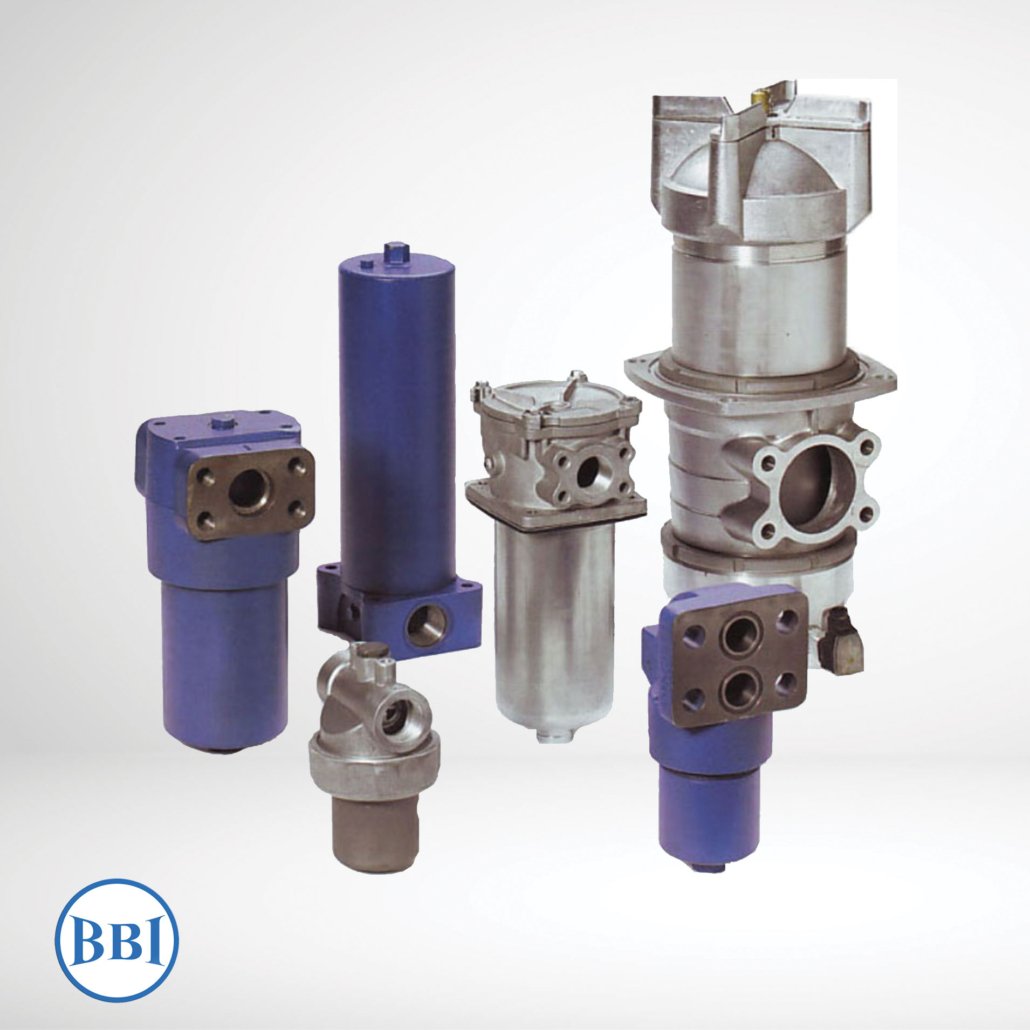

Pressure filter: FHB, FHM, FMM, FHA, FMP, and FHP series Max working pressure: 320 bar (FHB, FHM, FMM, FHA), 250 bar (FMP), and 420 bar (FHP) Flow rates: from 5-350 L/min (FHB, FHM, FMM, FHA), 20-150 L/min (FMP), 20-420 L/min (FHP) Element types: 3-60 micron Port options: pressure line designed for NG 6 [CETOP 03], […]
Filter
Return Filter: MPF, MPT, MPH/MPI, and FRI series Max working pressure: 3 bar (MPF), 7 bar (MPT, MPH/MPI), and 20 bar (FRI) Flow rates: from 10-800 L/min (MPF), 10-150 L/min (MPT), 50-1000 L/min (MPH/MPI), 30-1200 L/min (FRI) Element media: glass fibre, resin impregnated cellulose or wire mesh Port options: BSP; NPT; and SAE flange DUPLEX […]
Filter

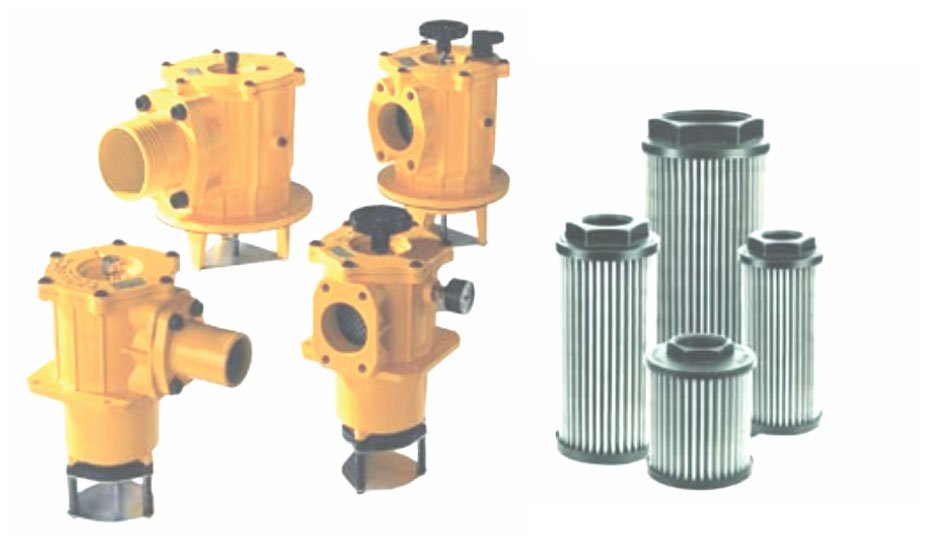

Suction Filter: SF2-250, FAS and STR series Flow rates: from 10 – 150 L/min (SF2-250), 25 – 850 L/min (FAS), and 5 – 600 L/min Element media: cleanable wire mesh Port options: BSP; NPT; (STR) or SAE flange

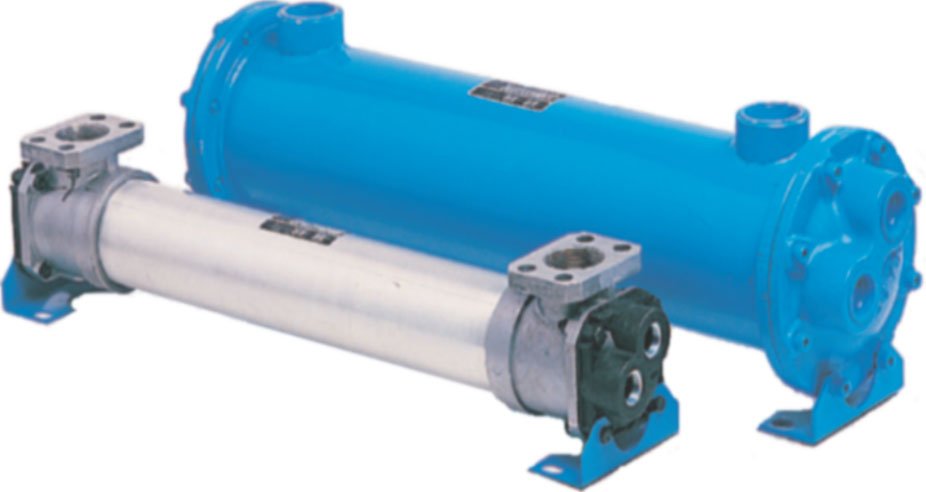

Cooler
Although not as efficient and compact as the Plate Water Oil cooler, Shell and Tubes coolers are still extremely popular in various types of industries. OLEAR Fawcett Christie therefor strives to find the best possible design that would combine a limited water flow rate with a maximum efficiency Comes in various size and capacity
